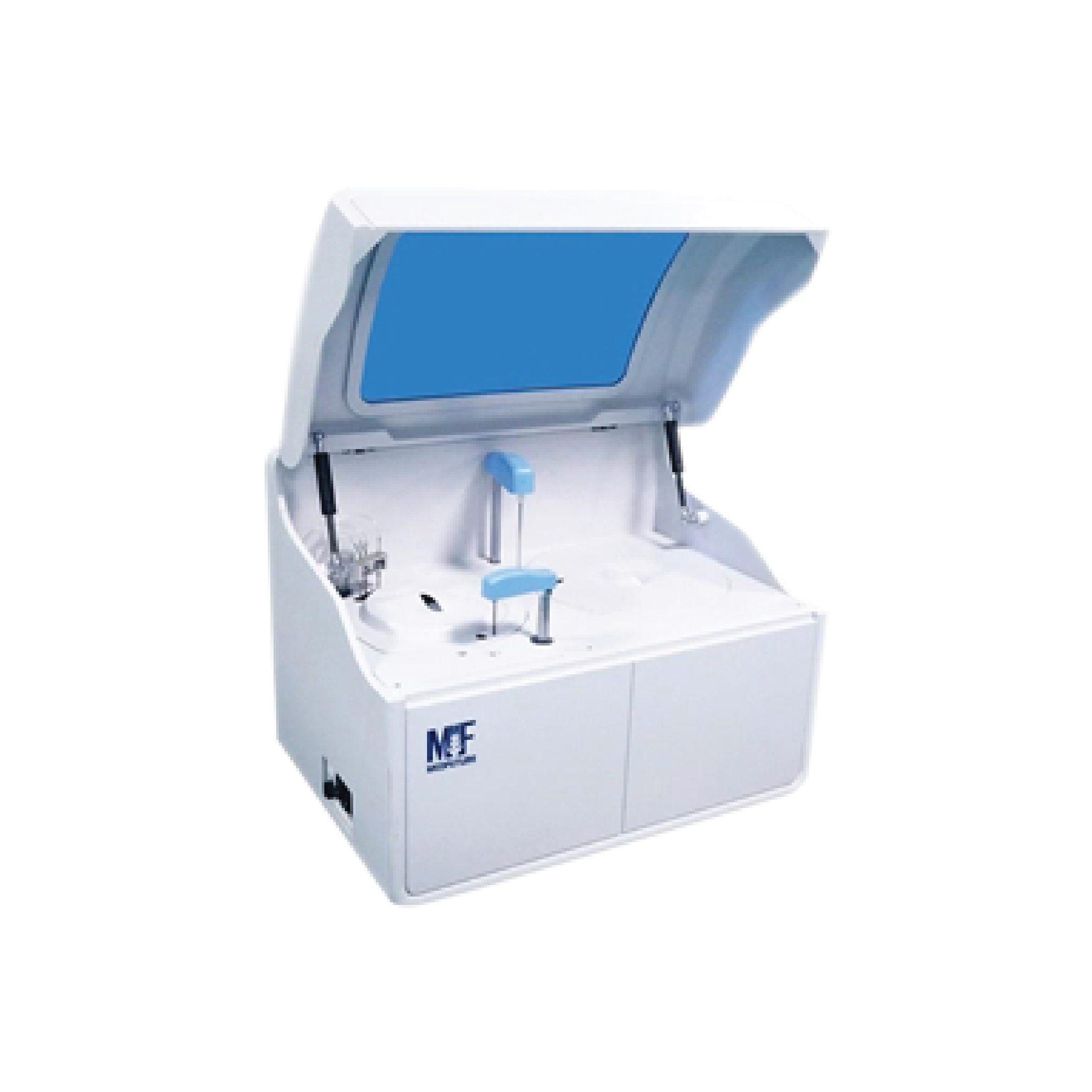

MFCA-200 Full-Auto Clinical Chemistry Analyzer

MFCA-200 Full-Auto Clinical Chemistry Analyzer: Precision Diagnostics for Your Laboratory

The MFCA-200 Full-Auto Clinical Chemistry Analyzer is a state-of-the-art, bench-top instrument engineered to deliver high-throughput, fully automated clinical chemistry analysis. Designed for accuracy, efficiency, and ease of use, this analyzer is the ideal solution for low to mid-volume hospitals and diagnostic laboratories seeking reliable and consistent patient results. Its advanced features and robust performance ensure a solid foundation for analytical excellence, minimizing operator variability and standardizing the diagnostic process.

MFCA-200 Full-Auto Clinical Chemistry Analyzer Key Features

• High Throughput: Capable of processing up to 200 tests per hour, significantly increasing laboratory efficiency.
• Expanded On-board Testing: Offers extensive testing capabilities to meet diverse diagnostic needs.
• Reduced Sample Volume: Requires minimal sample volume (2-70µl), preserving precious patient samples.
• Simple and Intuitive Operation: Features an easy-to-use interface designed for seamless operation and minimal training.
• Consistent Quality Results: Standardized test menus, assay methods, and instrument operations ensure reproducible and reliable outcomes.
• Advanced Probe Technology: Equipped with a coated probe featuring anti-collision and liquid level detection functions for enhanced safety and accuracy.
• Automatic Probe Washing: Ensures probe cleanliness for precise measurements and prevents cross-contamination.
• Refrigerated Reagent Tray: Maintains reagent stability with an independent switch for the cooling system.
• Precise Temperature Control: Reaction temperature is maintained at a stable 37±0.2ºC with real-time monitoring.
• Reusable Cuvettes: Utilizes 48 reusable cuvettes with a 6mm optical path length for cost-effectiveness and performance.
• Independent Mixing: Features an independent mixer probe for thorough and consistent sample-reagent homogenization.
• Automatic Cuvette Washing: Streamlines workflow with automated cuvette cleaning.
• STAT Functionality: Prioritizes urgent samples for rapid diagnosis.
• Comprehensive Calibration and QC: Supports various linear and non-linear calibration methods and real-time quality control with Westgard multi-rule.
• LIS Connectivity: Bi-directional LIS system support with HL7 protocol ensures seamless integration into laboratory information systems.
• Certifications: Holds prestigious certifications including CE, FDA, ISO9001, ISO14001, and ISO13485, signifying adherence to international quality and safety standards.

Technical Specifications

• Model: MFCA-200
• Throughput: 200 Tests/hour
• Analysis Methods: End-point, Fixed-time, Rate (Kinetic)
• Sample Positions: 37
• Reagent Positions: 28
• Sample Volume: 2-70µl
• Reagent Volume: 20-350µl
• Reaction Temperature: 37±0.2ºC
• Cuvettes: 48 reusable cuvettes (6mm optical length)
• Light Source: 6V/10W Halogen Lamp
• Spectrophotometry: Post-spectral spectrophotometry
• Wavelengths: 340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800nm
• Absorbance Range: 0-3.0 Abs
• Software: Windows 7/8/10 (32/64bit)
• LIS System: Bi-direction, HL7 protocol support
• Interface: LAN port
• Power Supply: AC220V±10%, 50/60Hz or 110V±10%, 60Hz, 300W
• Working Temperature: 15~30ºC
• Water Consumption: Deionized water < 5L/H
• Humidity: 40-85%
• External Dimensions (W*D*H): 625*425*460mm
• Net Weight: 36kg
