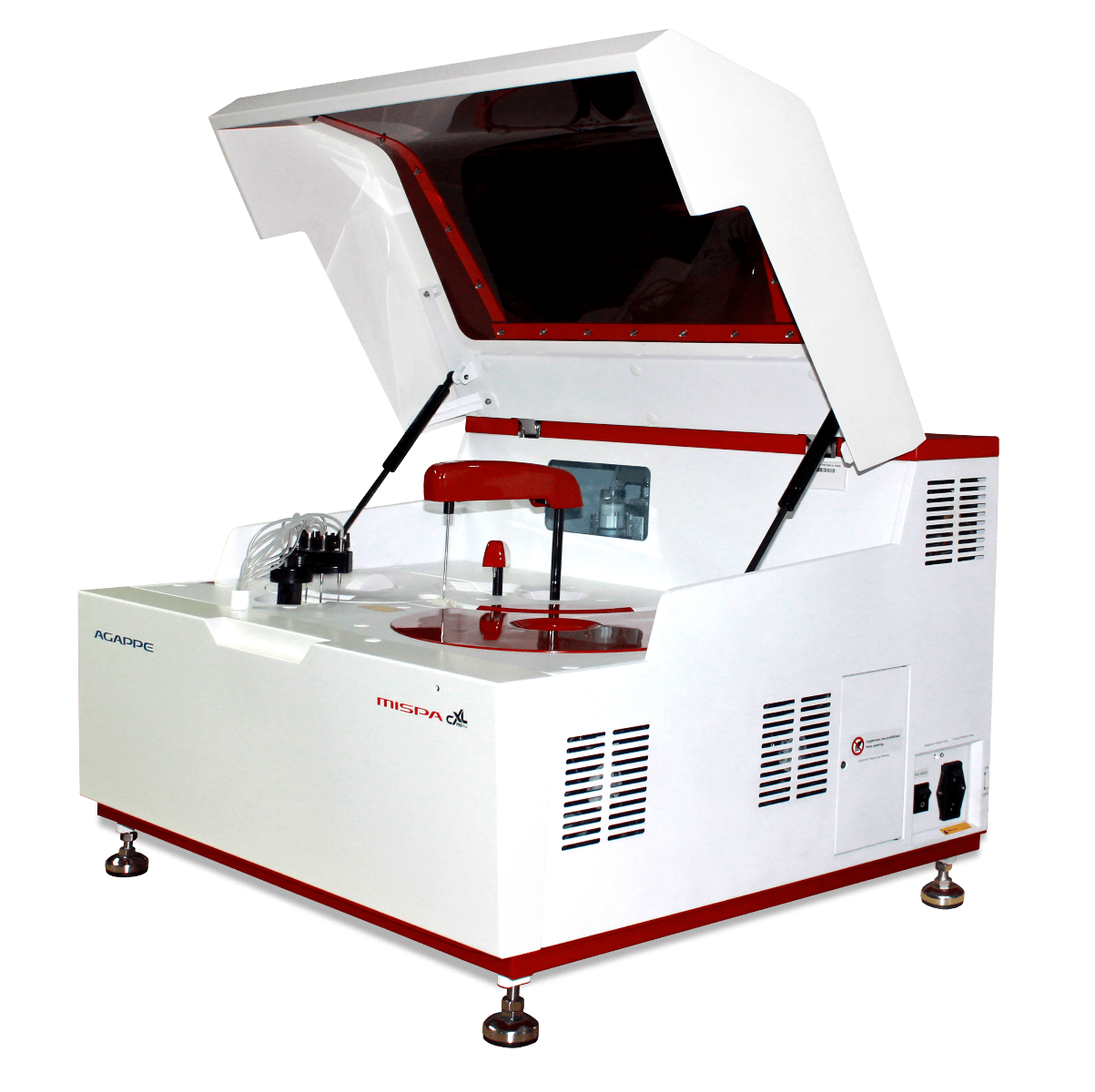

Mispa CXL Pro Plus Fully Automated Clinical Chemistry Analyzer

Mispa CXL Pro Plus Fully Automated Clinical Chemistry Analyzer Overview

The Mispa CXL Pro Plus Fully Automated Clinical Chemistry Analyzer represents the pinnacle of laboratory automation, engineered by Agappe for unparalleled performance and reliability in diagnostic testing. This compact, random-access system is designed to empower clinical laboratories in Bangladesh with high-throughput, precise analytical capabilities. Featuring advanced photometric technology and a robust design, the Mispa CXL Pro Plus delivers accurate results for a comprehensive range of clinical chemistry tests, making it an essential asset for any modern diagnostic center aiming for ultimate automation and efficiency. It is the ideal solution for laboratories seeking to enhance their diagnostic accuracy and operational workflow.

Mispa CXL Pro Plus Fully Automated Clinical Chemistry Analyzer Key Features

• Ultimate Automation: A fully automated, discrete, random-access analyzer designed for seamless operation.
• High Photometric Throughput: Delivers up to 240 clinical chemistry tests per hour, significantly boosting laboratory efficiency.
• Advanced Spectrophotometry: Utilizes Holographic Concave Flat Field Grating (HCFG) rear spectrophotometry to minimize ambient light interference and ensure maximum accuracy.
• Super Microanalysis: Incorporates photo-spot technology for highly sensitive and precise measurements.
• Superior Wash System: Features an onboard laundry system with 7 stops and 11 steps, including a special reverse function for the third wash probe, ensuring minimum carryover (<0.05%) and immaculate result delivery.
• Triple Speed Mixing: A sophisticated mixing mechanism with High, Medium, and Low speeds ensures perfect homogeneity for routine and special parameters like CRP, ASO, and RF.
• Real-time Water Quality Checks: Proactively monitors water quality before sample analysis, guaranteeing optimal testing conditions and preventing reagent waste or result variations due to contamination.
• Enhanced Probe Design: Special probes with internal water pressure wash and external waterfall wash, coupled with vertical collision protection and a degassing device, eliminate carryover and prevent probe damage.
• Automated HbA1c with Whole Blood: Offers onboard automated lysing for HbA1c testing directly from whole blood, eliminating manual steps and potential errors.
• Minimal Reagent & Water Consumption: Achieves low operational costs with minimal water usage (approx. 4 Ltr/hr for 240 tests) and efficient detergent use (40 µl concentrated wash per cuvette).
• Flexible Sample & Reagent Handling: Accommodates up to 80 positions for reagents and samples, with reagent volumes from 10-300 µl and sample volumes of 2-35 µl, ensuring minimal cost per test.
• Versatile Reaction Capabilities: Supports endpoint, fixed time, kinetic, single & dual reagent chemistries, and mono & bi chromatic measurements with linear & non-linear multipoint calibration methods.
• Semi-Permanent Reaction Cuvettes: Features 56 positions of optical plastic cups for efficient and accurate reaction analysis.
• Precise Temperature Control: Maintains a constant reaction disk temperature of 37±0.1°C using a thermostat air bath, saving water and ensuring optimal reaction conditions.
• User-Friendly Interface: Designed with intuitive controls and a Windows-based operating system for ease of use and data management.
• Pre and Post-Dilution Facility: Offers enhanced flexibility for sample processing.

Technical Specifications

• Analyzer Type: Fully Automated, Discrete, Random-Access Clinical Chemistry Analyzer
• Photometric Throughput: Up to 240 tests/hour
• Photometric System: HCFG rear Spectrophotometry
• Measuring Principle: Spectrophotometry
• Wavelengths: 12 Wavelengths (340nm, 380nm, 405nm, 450nm, 480nm, 505nm, 546nm, 570nm, 600nm, 660nm, 700nm, 750 or 800nm)
• Methodology: Endpoint, Fixed time, Kinetic, Single & Dual reagent chemistries (Mono & Bi chromatic), Linear & non-linear multipoint calibration
• Light Source: Halogen – Tungsten lamp (12V/20W)
• Reagent/Sample Positions: Up to 80 Positions
• Reagent Volume: 10~300 µl
• Sample Volume: 2~35 µl
• Reagent Bottle Volume: 20 & 70 ml
• Sample Dilution: Pre & Post dilution facility
• Reaction Cuvette: 56 positions optical plastic cup
• Reaction Volume: 100~360 µl
• Reaction Temperature: 37±0.1°C
• Mixing System: Teflon-coated stirrer with triple-speed mixing mechanism
• Reaction Disk Constant Temperature: Thermostat air bath
• Laundry System: 7 stops, 11 steps
• Dimensions: 744 x 703 x 530 mm (L x W x H)
• Weight: Approx. 100 Kg
• PC Operating System: Windows 7 or Windows 10
• PC Configuration: CPU > 2.9 GHz (dual-core processor); RAM > 4 GB; Harddisk ≥ 160 GB
• Power Supply: 100-240 VAC, 50/60 Hz
• Power Consumption: 600 VA
• PC Interface: RS 232 Port / TCP/IP network connection, standard RJ-45
