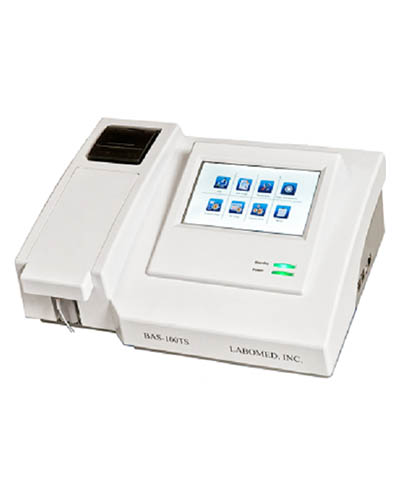

LABOMED BAS-100 Semi Auto Biochemistry Analyzer

LABOMED BAS-100 Semi Auto Biochemistry Analyzer Overview

The LABOMED BAS-100 Semi Auto Biochemistry Analyzer is a sophisticated, semi-automated diagnostic instrument engineered for comprehensive clinical laboratory testing in Bangladesh. Designed for accuracy and efficiency, this analyzer utilizes a precise suction pump system and cuvette-based photometric scanning to perform a wide array of biochemical assays. It is an ideal solution for laboratories requiring reliable, reproducible results for routine and specialized diagnostic panels, enhancing patient care through precise analytical data.

LABOMED BAS-100 Semi Auto Biochemistry Analyzer Key Features & Benefits

• Versatile Assay Capabilities: Supports multiple assay methods including Absorbance, Concentration, Factor, 1-point endpoint, 2-point endpoint (Sample blank), Fixed Time, Kinetic, Dichromatic, and Immunoturbidimetric. Optional Coagulation testing further expands its utility.
• Advanced Photometric System: Features 7 standard filters (340, 405, 450, 505, 546, 578, 630 nm) with a 5-year warranty, ensuring long-term performance and accuracy for photometric scanning across various wavelengths.
• High-Quality Light Source: Utilizes a 6V 10W long-life Tungsten Halogen lamp with a service life of 2000 hours, equipped with auto-shutdown and auto-sleep functions to conserve energy and prolong lamp life.
• Intuitive User Interface: A vibrant 7.0-inch TFT Color touchscreen with 800×480 resolution provides real-time response curve display and easy navigation for efficient operation.
• Integrated Thermal Printer: A built-in 57mm thermal printer with paper alarm and transparent cover allows for immediate on-site result printing, simplifying workflow and reporting.
• Precise Temperature Control: Offers incubation at 37℃ and room temperature with an accuracy of ±0.1℃, controlled by Peltier elements for consistent assay conditions.
• High-Resolution Measurement: Achieves an absorbance resolution of 0.0001 Abs and a photometric range of 0-3.5 Abs, ensuring detection of even subtle changes.
• Efficient Sample Handling: Features a programmable vacuum system for sample aspiration ranging from 200 to 5000 µl, with a carry-over of less than 1% for minimized cross-contamination.
• Robust Quality Control: Integrates L-J QC charts and Westguard Multi-regulation analysis for reliable monitoring of assay performance and diagnostic accuracy.
• Powerful Software & Storage: Runs on Windows CE 6.0, capable of storing over 200 assay programs and 200,000 results. Unlimited storage is available when connected to a computer.
• Extensive Connectivity: Equipped with 4 USB ports for peripherals (keyboard, mouse, printer, U Disk, Bar Code Reader) and 1 USB Slave port for PC control. An Ethernet port is also included for network integration. Supports external scanners and remote diagnostics.
• User-Friendly Operation: Designed for ease of use with a single-chip machine that does not require separate PC operating systems like Windows XP or 7. Operation manuals are available in 4 languages.

Technical Specifications

• Assay Methods: Absorbance, Concentration, Factor, 1-point endpoint, 2-point endpoint (Sample blank), Fixed Time, Kinetic, Dichromatic, Immunoturbidimetric. (Optional Coagulation)
• Wavelengths: 7 standard filters: 340, 405, 450, 505, 546, 578, 630 nm. (5-year warranty per filter)
• Light Source: 6V 10W Tungsten Halogen Lamp (2000-hour life), with auto-shutdown and auto-sleep.
• Display: 7.0-inch TFT Color Touch Screen (800×480 resolution, 260,000 Pixels)
• Printer: Built-in Thermal Printer (57mm paper)
• Incubation Temperature: 37℃ and Room Temperature (±0.1℃ accuracy)
• Flow Cell Capacity: 32µl (10mm optical path)
• Resolution: 0.0001 Abs
• Photometric Range: 0 – 3.5 Abs
• Absorbance Range: 0.0000-2.5000 (10mm flowcell); 0.0000-3.5000 (6mm flowcell)
• Spectral Bandwidth: < 8 nm
• Vacuum System: Programmable 200 – 5000 µl
• Carry Over: < 1%
• Stability: < 0.005 Abs/hour
• Absorbance Precision: 0.0001 Abs
• Absorbance Drift: < 0.005 Abs/hour
• Absorbance Repeatability: CV ≤ 1%
• QC Analysis: L-J QC Chart, Westguard Multi-regulation Analysis
• Software: Windows CE 6.0, Storage for 200 programs, 200,000 results. Unlimited PC storage.
• CPU: ARM Cortex-A8, 720MHz
• Memory: 1G bit DDR2 SDRAM, 256 MB Flash
• Ports: 4 x USB-A (Keyboard, Mouse, Printer, U Disk, Bar Code Reader), 1 x USB-B (PC connection), 1 x Ethernet
• Printer Compatibility: Supports all HP series inkjet printers
• External Connectivity: PC control software, LIS system, External scanner, Remote diagnostics
• Operational Environment: Temperature: 10℃ ~ 37℃, Humidity: ≤ 85%
• Power Supply: 100-240V AC, 50Hz/60Hz (Wide range)
• Dimensions: 400mm (L) x 300mm (W) x 160mm (H)
• Weight: 17 lbs (approx. 7.7 kg)
• Included Accessories: Power Cable
