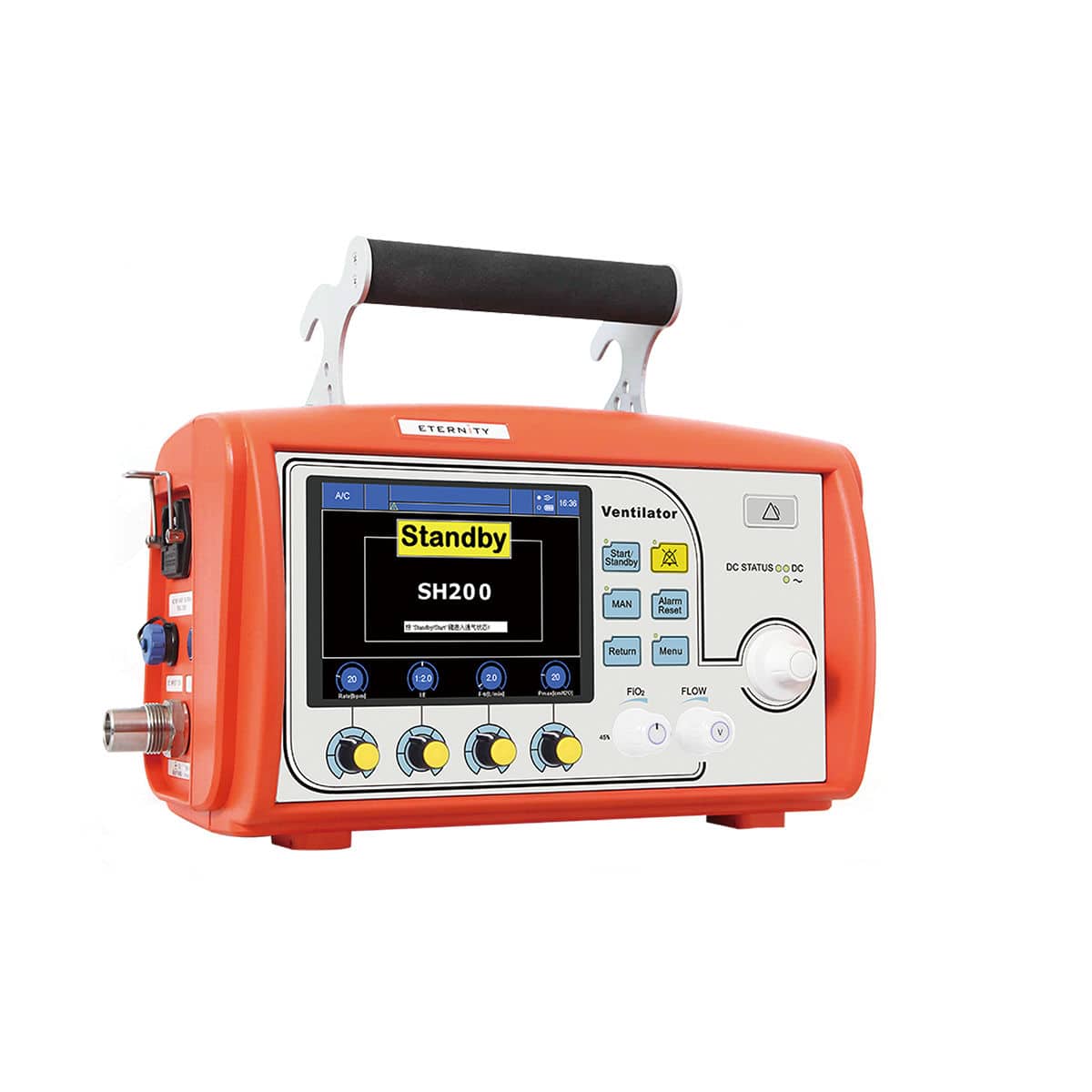

SH-200 Emergency Ventilator – Eternity

SH-200 Emergency Ventilator – Eternity Overview

The SH-200 Emergency Ventilator – Eternity is a sophisticated, life-sustaining medical device engineered to provide critical respiratory support in emergency and critical care settings. Recognized for its advanced technological integration and user-centric design, this ventilator delivers precise control over ventilation parameters, ensuring optimal oxygenation and ventilation for patients requiring immediate respiratory assistance. Its intuitive interface and comprehensive monitoring capabilities empower healthcare professionals to administer personalized care with unwavering confidence. The compact and portable nature of the Eternity Emergency Ventilator makes it an indispensable tool for rapid deployment, facilitating swift and effective respiratory intervention when every moment is critical.

SH-200 Emergency Ventilator – Eternity Key Features

• Advanced Ventilation Control: Offers multiple ventilation modes including A/C, SIMV, SPONT, SIGH, and MAN for versatile patient management.
• Precise Parameter Setting: Allows for accurate adjustment of Tidal Volume (VT), respiratory frequency, I:E ratio, inspiratory time, and pressure settings.
• Sensitive Triggering: Features both pressure and flow trigger sensitivity for responsive ventilatory support.
• Comprehensive Monitoring: Provides real-time monitoring of key respiratory parameters (VTI, VTE, MV, FiO2, Frequency) and waveforms (P-T, F-T, V-T), along with P-V and V-F loops.
• Robust Alarm System: Equipped with extensive alarms for frequency, tidal volume, airway pressure, MV, FiO2, and battery status to ensure patient safety.
• User-Friendly Interface: A bright 5.6″ TFT color screen displays vital information clearly, enhancing ease of use in high-pressure situations.
• Compact and Lightweight Design: Weighing only 7kg, its portable form factor (480mm x 260mm x 420mm) ensures easy transport and setup in diverse environments.
• Durable Construction: Built to withstand the demands of emergency medical services.

Technical Specifications

• Display: 5.6″ TFT Color Screen
• Dimensions: 480mm (Height) x 260mm (Width) x 420mm (Depth)
• Weight: 7kg (Gross Weight)
• Ventilation Modes: A/C, SIMV, SPONT, SIGH, MAN
• Tidal Volume (VT): 50-1500 mL
• Respiratory Frequency: 4-80 bpm
• Inspiratory/Expiratory Ratio (I:E): 3:1 to 1:5
• Inspiratory Time: 0.2-10s
• Pressure Trigger Sensitivity: Adjustable
• Flow Trigger Sensitivity: 1-20 L/min
• PEEP: 0-20 cmH2O
• Inspiratory Pressure (Pinsp): 5-80 cmH2O
• FiO2: 45-100%
• Mechanical PEEP: Optional
• Monitoring Parameters: VTI, VTE, MV, FiO2, Frequency, Fspn
• Waveforms: P-T, F-T, V-T
• Loops: P-V loop, V-F loop
• Measured Pressures: PEEP, Ppeak, Pmean
• Alarm Types: Frequency (Upper & Low), VTE (Low/High), Continuous Airway Pressure (High), MV (Low/High), Apnea, O2 Failure, FiO2 (Low/High), AC Power Source Failure, Low Battery, Battery Exhausted, Paw (Low/High)
• Alarm Silence Time: ≤120 Seconds
• Optional Configurations: Trolley, Carry Bag, Carry Steel
