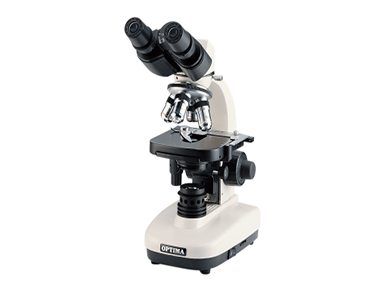

OPTIMA G-206 Biological Laboratory Microscope

OPTIMA G-206 Biological Laboratory Microscope Overview

The OPTIMA G-206 Biological Laboratory Microscope is a high-precision optical instrument engineered for detailed observation in biological and medical research, educational institutions, and clinical diagnostics. Designed with an emphasis on clarity, stability, and user comfort, this microscope delivers exceptional performance for a wide range of microscopic analysis tasks.

OPTIMA G-206 Biological Laboratory Microscope Key Features & Benefits

• Enhanced Field of View: Equipped with wide-field eyepieces (WF10X/18) for a broader and more immersive viewing experience.
• Superior Illumination: Features a continuously adjustable 6V15W halogen lamp, allowing precise control over light intensity for optimal specimen visibility and contrast. Includes plano-concave mirror as a standard accessory.
• Robust Construction: The main body is constructed from durable aluminum alloy, ensuring structural integrity and long-term stability for consistent results.
• High-Quality Optics: Boasts an excellent optical system delivering a wide field of view, sharp contrast, and a comfortable viewing posture, crucial for extended laboratory sessions.
• Precise Focusing: Incorporates a coaxial focusing knob with a coarse focusing range of 15mm and fine focusing graduated in 2.5μm increments for meticulous adjustments.
• Versatile Mechanical Stage: A mechanical stage measuring 120 x 125mm with a moving range of 35 x 75mm allows for precise and controlled specimen manipulation.
• Comprehensive Objective Set: Comes with a standard set of achromatic objectives: 4X, 10X, 40X (spring-loaded), and 100X (spring-loaded) oil immersion, catering to diverse magnification needs.
• Efficient Condenser System: Features an N.A. 1.25 Abbe condenser with an iris diaphragm and filter holder for optimized light control and specimen illumination.
• Adaptable Power: Operates on a switchable 110/220V power supply, ensuring compatibility in various laboratory environments.
• Included Accessories: Supplied with essential accessories including a dust cover, blue and green filters, a backup lamp, and a plano-concave mirror for immediate use.
• Optional Enhancements: Offers optional accessories such as WF10X/18 eyepieces with scales and WF15X eyepieces, and a 20X objective for expanded analytical capabilities.

Technical Specifications

• Model: G-206
• Observation Tube: Binocular head inclined at 45˚
• Interpupillary Distance: Adjustable from 55mm to 75mm
• Focusing Mechanism: Coaxial coarse and fine focusing knobs
• Coarse Focusing Range: 15mm
• Fine Focusing Graduation: 2.5μm increments
• Stage Type: Mechanical stage
• Stage Dimensions: 120 x 125mm
• Stage Moving Range: 35 x 75mm
• Standard Eyepiece: WF10X/18
• Standard Objectives: Achromatic 4X, 10X, 40X (spring), 100X (spring) oil
• Condenser: N.A. 1.25 Abbe condenser with iris diaphragm and filter holder
• Illumination: 6V15W Halogen lamp with adjustable intensity
• Power Supply: 110/220V switchable
• Standard Accessories: Dust cover, blue filter, green filter, backup lamp, plano-concave mirror
• Optional Accessories: WF10X/18 eyepiece with 10/100mm scale, WF15X eyepiece, 20X objective
