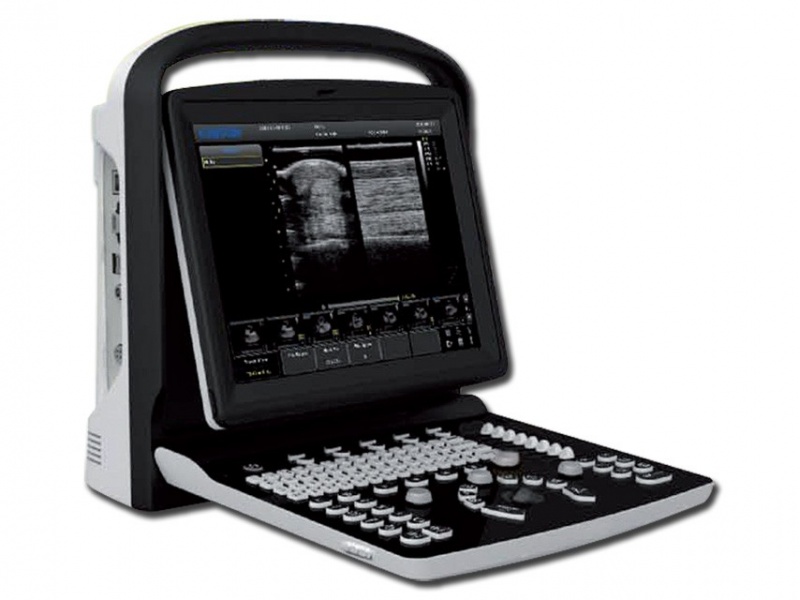

Chison ECO-1 Portable Ultrasound

Chison ECO-1 Portable Ultrasound: Precision Imaging for Mobile Healthcare in Bangladesh

The Chison ECO-1 Portable Ultrasound is a state-of-the-art, compact ultrasound system engineered by Chison to deliver exceptional diagnostic imaging performance for a wide range of clinical applications. Designed for both reliability and ease of use, this portable ultrasound machine is an ideal solution for healthcare professionals in Bangladesh seeking advanced imaging capabilities, particularly for mobile services and point-of-care diagnostics. Its intuitive interface and robust feature set ensure accurate diagnoses, enhanced patient care, and efficient workflow.

Chison ECO-1 Portable Ultrasound Key Features & Benefits

• Exceptional Portability: Featuring an ultra-light and compact design, the ECO-1 is perfectly suited for mobile healthcare services, enabling clinicians to perform high-quality ultrasound examinations wherever the patient is located.
• Versatile Display: Equipped with a 12-inch rotatable LED monitor (0-30 degrees), it offers adaptable viewing angles, ensuring optimal visibility and comfort for the operator in diverse clinical environments.
• Comprehensive Imaging Modes: Supports multiple display modes including B, B/B, 4B, M, and B/M, providing flexibility for various diagnostic needs and imaging techniques.
• Advanced Image Processing: Utilizes Multiple Beam Forming Technology to significantly enhance frame rates and improve image resolution, leading to clearer, more detailed diagnostic images.
• Deep Scanning Capabilities: Achieves a maximum scanning depth of up to 240mm (dependent on probe type), allowing for thorough examination of deep anatomical structures.
• Broad Frequency Range: Offers probe frequencies from 2.5MHz to 11MHz (dependent on probe type), catering to a wide spectrum of imaging requirements from superficial to deeper tissues.
• Extensive Application Support: Pre-loaded with specialized software packages for Urology, Vascular, Small Parts, Pediatrics, Cardiology, Obstetrics, Gynecology, Abdomen, and Orthopedics, making it a truly versatile diagnostic tool.
• Efficient Data Management: Features robust Archives Management for patient information, image records, and test reports, streamlining clinical workflow and record-keeping.
• User-Friendly Interface: Designed with a focus on usability, making it easy to operate for medical professionals of all experience levels.
• Reliable Connectivity: Includes 3 x USB ports, 1 x Probe connector, VGA Port, Video Port, and LAN Port for seamless integration with other medical devices and networks.

Technical Specifications

• Brand: Chison
• Model: ECO-1 Portable Ultrasound
• Display: 12-inch Rotatable LED Monitor (0-30 degrees)
• Display Modes: B, B/B, 4B, M, B/M
• Gray Scale: 256 Levels
• Max Scanning Depth: Up to 240mm (probe dependent)
• Probe Frequency Range: 2.5MHz – 11MHz (probe dependent)
• Ports: 3 x USB, 1 x Probe Connector, VGA, Video, LAN
• Power Supply: AC 100V-240V, 50Hz-60Hz
• Included Probe (Standard Configuration): C3-A Convex Probe
• Software Packages: General Measurement, OB, Obstetrics, GYN, Urology, Abdomen, Cardiac B/M Mode, Vascular, Small Parts, Orthopedic, Pediatrics.
• Data Management: Archives Management (Patient Info, Images, Reports)
• Design: Ultra-light and compact for maximum portability.
