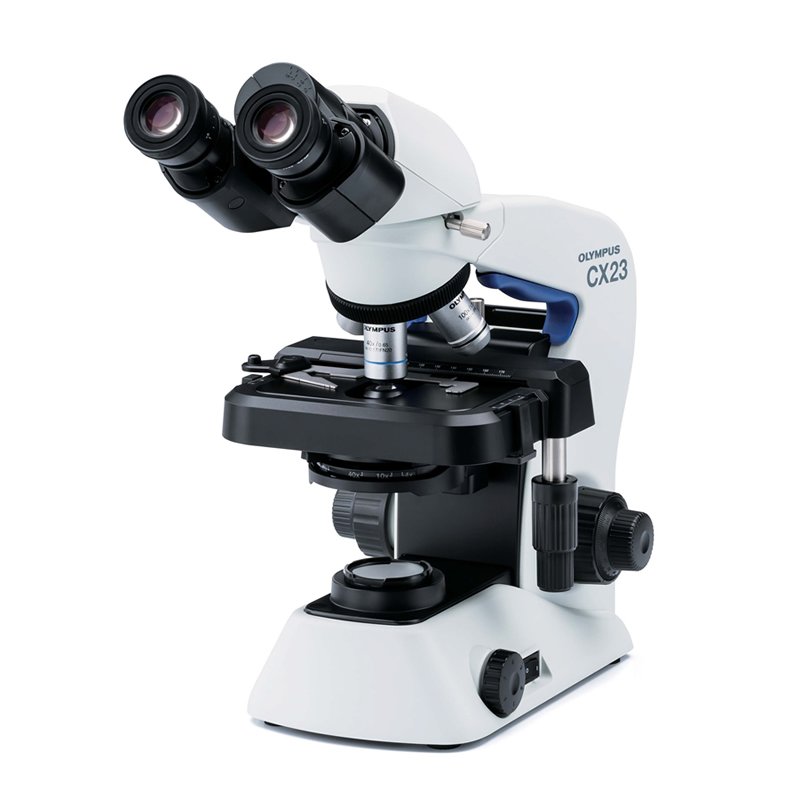

Olympus CX23 Biological Binocular Microscope Japan

Olympus CX23 Biological Binocular Microscope Japan Overview

The Olympus CX23 Biological Binocular Microscope Japan is an economically priced, high-performance optical instrument meticulously engineered for educational and medical school applications. Renowned for its exceptional optical clarity and robust mechanical construction, this microscope simplifies complex biological observation for both novice and experienced users, ensuring a seamless learning curve and reliable performance in demanding academic environments.

Olympus CX23 Biological Binocular Microscope Japan Key Features

• Superior Optical Efficiency: Delivers high standards of optical and mechanical quality for clear, accurate imaging essential for educational purposes.
• User-Friendly Design: Features conveniently placed controls and a slim base for comfortable viewing and efficient adjustments, making it ideal for first-time microscope users.
• Enhanced Portability: Designed with a small footprint, lightweight construction (approx. 5.9 kg), and ergonomic non-slip carrying grips for easy transport and safe handling within classrooms or labs.
• Observational Comfort: Allows for easy adjustment of interpupillary distance and eyepoint height, along with individual diopter settings, ensuring a personalized and comfortable viewing experience.
• Precise Specimen Manipulation: Equipped with an inward-facing rotating nosepiece for easy specimen access and an Abbe condenser with a 1.25 NA for optimal illumination. The graduated mechanical stage provides precise slide movement (76 mm X / 30 mm Y).
• Damage Prevention: Incorporates a focus lock to prevent objective-to-specimen damage and a torque release function on focusing knobs to protect against excessive force.
• Durable Construction: Built with an aluminum die-casting metal frame and protective covering for longevity, even with prolonged and repeated use.
• Integrated Storage: Includes a convenient storage compartment for the power cable and AC adapter, along with a built-in security slot for anti-theft cables.
• Vivid Illumination: Features uniform LED transmitted illumination with a consistent color temperature, providing true-to-life colors and a long operational life of 20,000 hours with low power consumption.
• Wide Field of View: Offers a large Field Number (FN) of 20 for a broader viewing area, complemented by specially designed Plan Achromat objectives for flat-field imaging.

Technical Specifications

• Brand: Olympus
• Origin: Japan
• Viewing Head: 30° inclined binocular tube, Infinity Optical System
• Interpupillary Distance Adjustment: 48 – 75 mm
• Eyepoint Adjustment: 370.0 – 432.9 mm
• Eyepieces: 10X, Field Number (FN) 20 (anti-fungus)
• Nosepiece: Revolving, fixed quadruple nosepiece with inward tilt
• Objectives: Infinity Plan achromat, anti-fungus (4x NA: 0.10 WD: 27.8 mm; 10x NA: 0.25 WD: 8.0 mm; 40x NA: 0.65 WD: 0.6 mm; 100x Oil NA: 1.25 WD: 0.13 mm)
• Stage: Wire movement mechanical fixed stage, Traveling range: 76 mm (X) x 30 mm (Y), Specimen holder, Specimen position scale
• Focusing: Stage height movement (coarse movement stroke: 15 mm), coarse adjustment limit stopper, torque adjustment for coarse adjustment knob, fine focus knob (minimum adjustment gradations: 2.5 µm)
• Condenser: Abbe condenser NA 1.25 with oil immersion
• Illumination System: Built-in transmitted illumination system, LED
• Power Consumption: 0.5 W (LED)
• Body Material: Aluminum die-casting metal frame
• Weight: Approximately 5.9 kg (13.01 lb)
• Warranty: Five-year warranty
