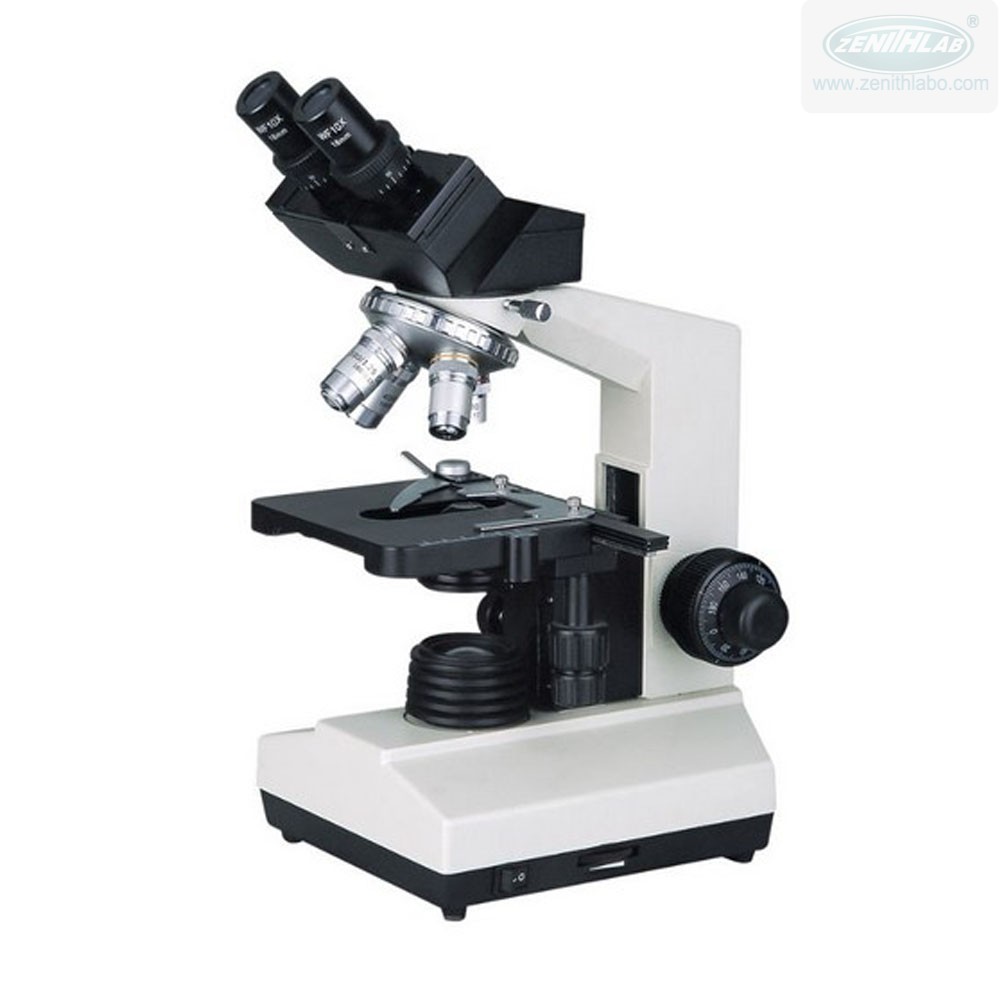

Novel Biological Microscope XSZ-107T Series

Novel Biological Microscope XSZ-107T Series: Precision Imaging for Advanced Laboratories

The Novel Biological Microscope XSZ-107T Series stands as a cornerstone in advanced microscopy, meticulously engineered for unparalleled clarity and precision in biological research, clinical diagnostics, and educational settings. This robust instrument is designed to deliver exceptional imaging performance, enabling scientists and medical professionals to observe cellular structures and microorganisms with remarkable detail and accuracy. Trust Medivillabd for a reliable solution that enhances your observational capabilities.

Novel Biological Microscope XSZ-107T Series: Key Features & Benefits

• Enhanced Viewing Comfort: Features a sliding binocular head for ergonomic observation during extended use, reducing eye strain.
• Superior Magnification: Equipped with a quadruple revolving nosepiece and high-quality WF10X eyepieces, offering versatile magnification options for detailed specimen analysis.
• Achromatic Objectives: Includes a set of precisely calibrated achromatic objectives (4X, 10X, 40X, 100X) for sharp, aberration-free images across a wide range of magnifications.
• Precision Specimen Control: A double-layer mechanical stage (140x140mm) with precise movement controls (75x50mm) allows for accurate and smooth manipulation of slides.
• Optimized Illumination: The Abbe condenser with an NA1.20 aperture, iris diaphragm, and filter, combined with adjustable S-LED illumination, ensures uniform and optimal lighting for all sample types.
• Fine Focus Mechanism: A coaxial coarse and fine adjustment system provides exceptionally fine control (0.002mm fine division) for sharp focusing, crucial for high-magnification work.
• Durable Construction: Built with high-quality materials for longevity and consistent performance in demanding laboratory environments.

Technical Specifications

• Viewing Head: Sliding Binocular Head
• Eyepiece: WF10X
• Nosepiece: Quadruple Revolving Nosepiece
• Objectives: Achromatic Objectives 4X, 10X, 40X, 100X
• Stage: Double Layers Mechanical Stage (140x140mm), Mechanical Movement Range (75x50mm)
• Condenser: Abbe Condenser NA1.20 with Iris Diaphragm & Filter
• Focusing System: Coaxial Coarse and Fine Adjustment
• Fine Focus Division: 0.002mm
• Coarse Stroke: 37.7mm per Rotation
• Fine Stroke: 0.2mm per Rotation
• Moving Range: 28mm
• Illumination: S-LED Illumination, Brightness Adjustable
