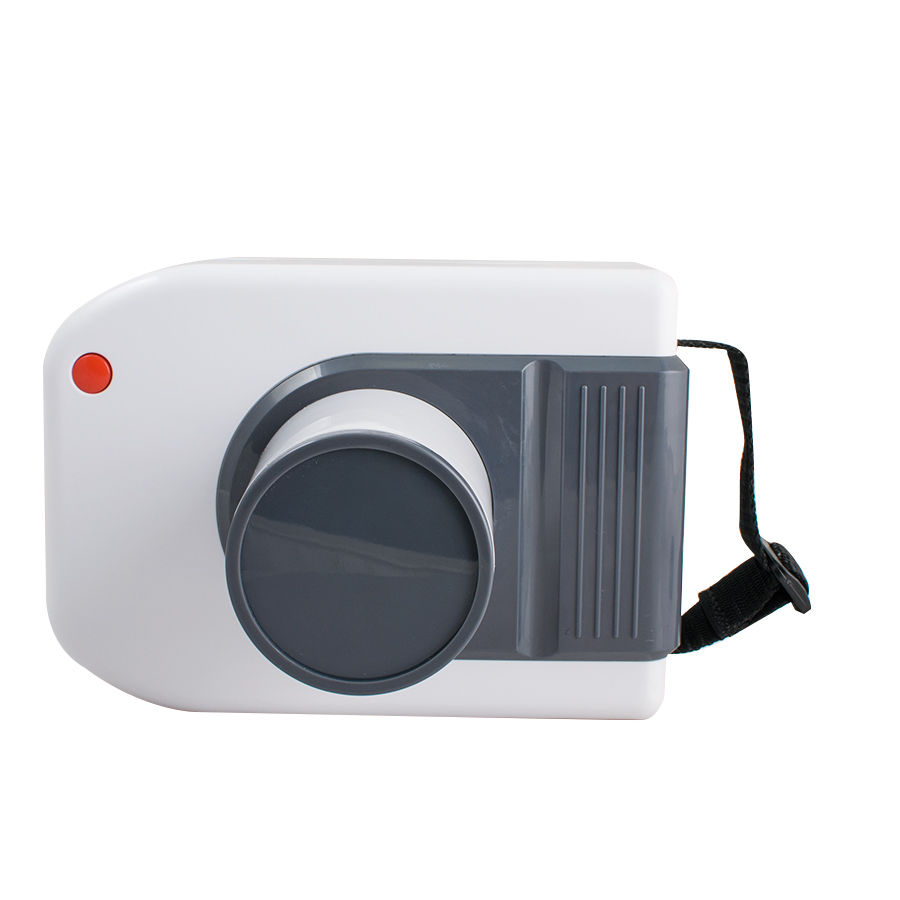

Digital Dental X-Ray Machine Handheld Portable Imaging Camera

Digital Dental X-Ray Machine Handheld Portable Imaging Camera Overview

The Digital Dental X-Ray Machine Handheld Portable Imaging Camera from Medivillabd is a state-of-the-art, DC high-frequency portable dental X-ray unit designed to revolutionize diagnostic imaging in dental clinics across Bangladesh. This compact and lightweight device offers exceptional ease of use with minimal radiation exposure, making it an indispensable tool for pre-treatment diagnosis of internal oral tissue structure, root depth analysis, and crucial for precise dental implant surgeries. Its advanced design ensures high-quality imaging for accurate clinical decisions.

Digital Dental X-Ray Machine Handheld Portable Imaging Camera Key Features & Benefits

• Exceptional Portability: Compact and lightweight design allows for easy maneuverability and use in various clinical settings.
• Low Radiation Emission: Engineered for patient safety with significantly reduced radiation levels compared to conventional units.
• Intuitive Operation: Features user-friendly manual buttons integrated directly onto the shell for straightforward control.
• Advanced Component Integration: All components are centralized on a single PC board, utilizing vacuum insulation and sealed stereotype protection for enhanced reliability and performance.
• High-Quality Imaging: Delivers clear and precise X-ray images, essential for accurate diagnosis and treatment planning.
• Durable Battery Life: Equipped with a long-lasting 6400mAh battery capable of capturing approximately 500 images on a full charge, with a lifespan of 1000 charge cycles.
• Seamless System Integration: Designed for direct connection with intra-oral digital X-ray imaging systems, streamlining your digital workflow.
• Versatile Application: Ideal for general dental practice, endodontics, and particularly vital for the meticulous planning and execution of dental implant procedures.

Technical Specifications

• Tube Voltage: 60KV
• Tube Current: 1.5mA
• Exposure Time: 0.1-2s
• Frequency: 30KHz
• Tube Focus: 0.3mm × 0.3mm
• Distance from Skin to Cone: 130mm
• Battery: DC 14.8V, 6400mAh
• Rated Power: 60VA
• Charger Input Voltage: AC 100V-240V ±10%
• Charger Output Voltage: DC 16.8V
• Operating Ambient Temperature: 5-40℃
• Operating Relative Humidity: <75%RH
