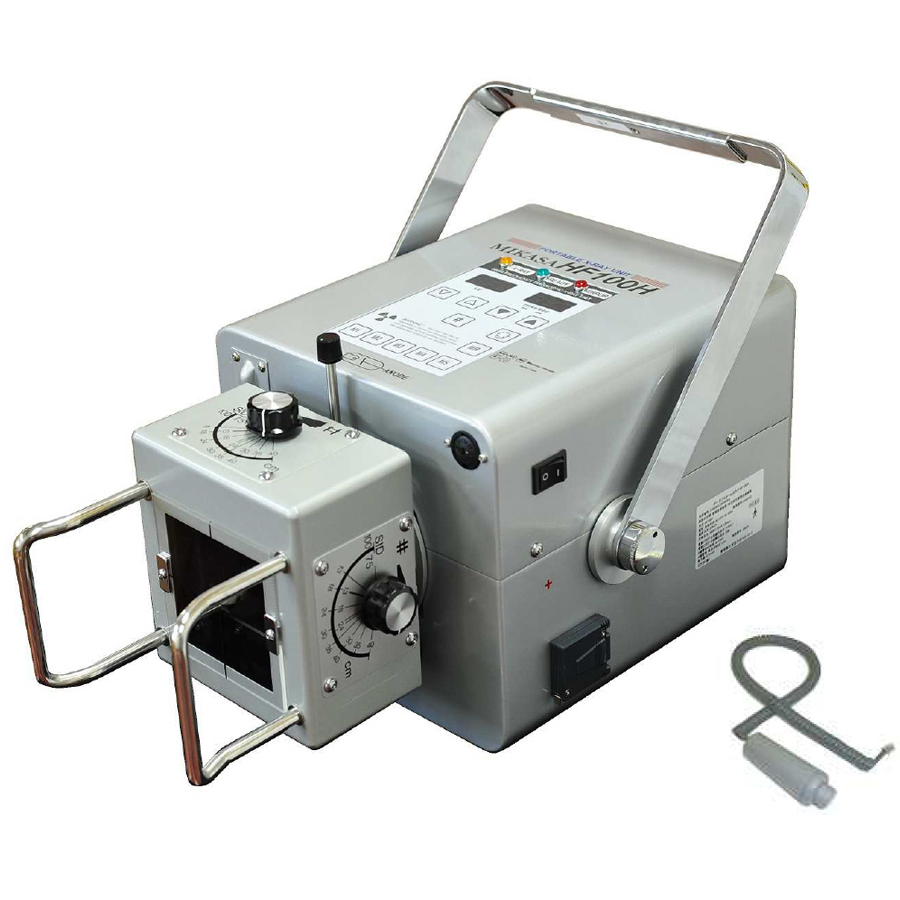

Mikasa HF100H Portable X-ray Machine

Mikasa HF100H Portable X-ray Machine Overview

The Mikasa HF100H Portable X-ray Machine is a high-precision device designed for diagnostic imaging in nursing homes, hospitals, and mobile clinics. Its compact and lightweight design ensures easy transportation, making it ideal for various healthcare settings, including military field clinics.

Mikasa HF100H Portable X-ray Machine Key Features & Benefits

• High Power Output: Operates at a maximum of 100 kV and 40 mA, providing reliable imaging capabilities.
• Compact and Lightweight: Weighing only 16.8 kg, it is easy to transport and set up in various locations.
• Versatile Exposure Settings: Features 5 memory stations for storing x-ray exposure techniques, enhancing usability.
• Compatibility: Fully compatible with all major DR digital systems, ensuring seamless integration.
• Adjustable Timer: Offers a timer range from 0.02 sec to 4.0 sec for precise exposure control.
• Durable Design: Built with high-quality materials for long-lasting performance in demanding environments.

Technical Specifications

• Input Voltage: 220-230V, AC single phase, 50/60Hz
• Output: 2 kW
• kV Range: 40 – 100 kV DC
• mA Range: 20 – 40 mA
• Timer: 0.02 sec. – 4.0 sec.
• Focal Spot Value: 1.2
• Dimensions: 286 mm (W) x 400 mm (L) x 230 mm (H)
• Weight: 16.8 kg
• Additional Features: Rotating collimator, 5 memory of output settings
