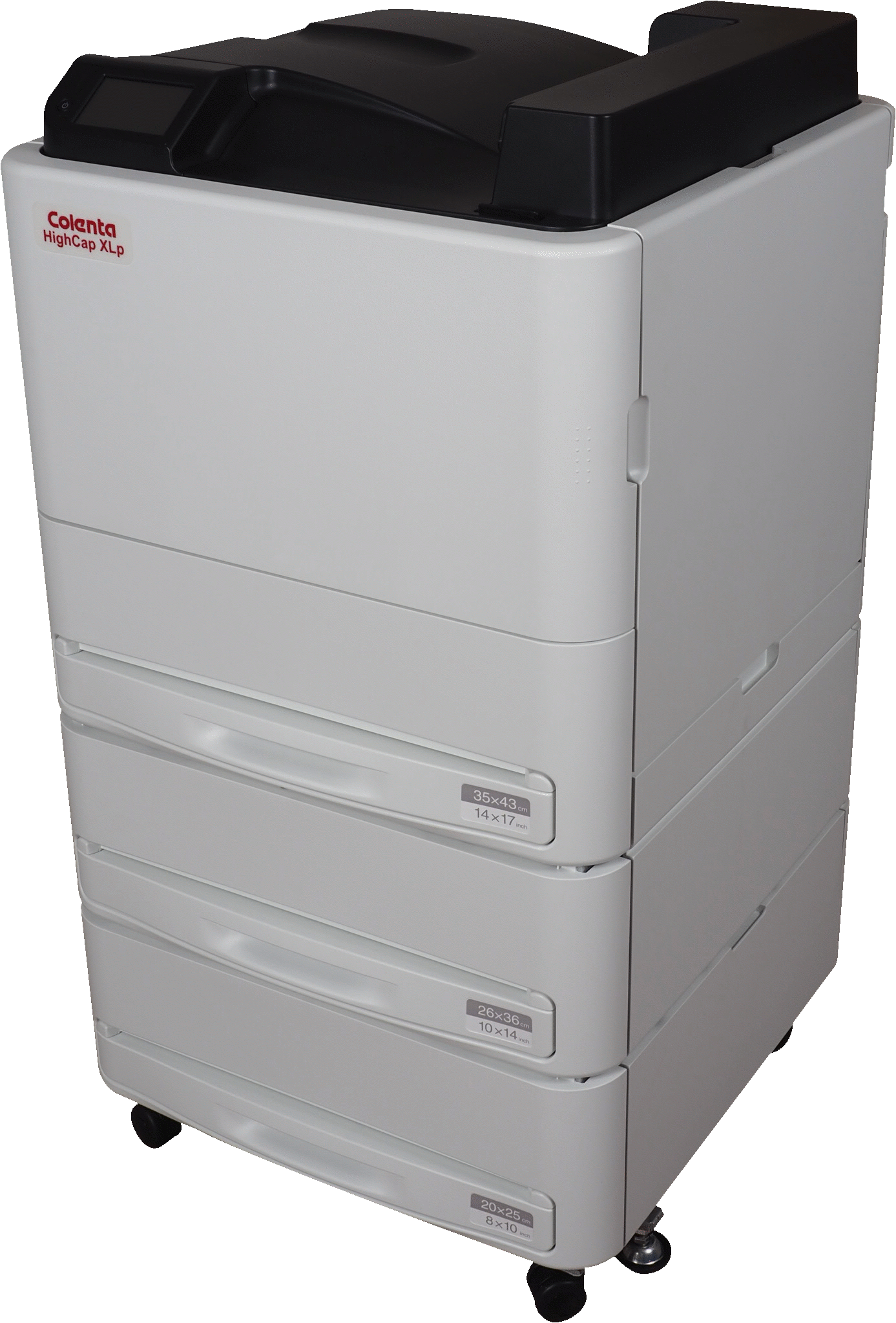

COLENTA CR Dicom Printer HighCap XLp

COLENTA CR Dicom Printer HighCap XLp Overview

The COLENTA CR Dicom Printer HighCap XLp is a state-of-the-art dry laser imager engineered for exceptional efficiency and superior image quality in medical diagnostic imaging. As a trusted healthcare supplier in Bangladesh, Medivillabd proudly presents this high-capacity printer, designed to streamline your radiology workflow by delivering rapid, high-resolution hard copies of DICOM images. Its advanced technology ensures that every detail is accurately reproduced, making it an indispensable tool for mammography and general radiography, ultimately reducing patient wait times and enhancing diagnostic confidence.

COLENTA CR Dicom Printer HighCap XLp Key Features

• High Processing Capacity: Capable of printing up to 110 films per hour at 35×43 cm (14″x17″), significantly accelerating examination throughput and reducing patient waiting times.
• Exceptional Print Resolution: Achieves up to 508 dpi (50µm pixel size), ensuring the clarity and detail required for precise mammography image interpretation.
• Multi-Size Film Capability: Features three universal film trays that can hold three different film sizes simultaneously, offering unparalleled flexibility for various imaging needs.
• Mammography Applicability: Specifically designed and optimized for high-quality mammography printing, meeting stringent diagnostic standards.
• Seamless DICOM Integration: Supports DICOM network input with up to 10 simultaneous connection associations, ensuring easy integration into existing PACS and HIS systems.
• Daylight Film Loading: Allows for convenient and safe film loading in normal room light conditions, simplifying operation and enhancing user safety.
• High-Fidelity Image Reproduction: Utilizes a laser exposure thermal development system and 14-bit recording gradation (16383 levels) for accurate and nuanced image output.
• Automatic Density Correction: Ensures consistent and optimal image density across all prints through automatic calibration.

Technical Specifications

• Recording Method: Laser exposure thermal development system
• Applicable Films: MEDIPHOT DRY IMAGING FILM DL and MEDIPHOT DRY IMAGING FILM DLM for Mammography
• Supported Film Sizes: 35x43cm (14″x17″), 26x36cm (10″x14″), 25x30cm (10″x12″), 20x25cm (8″x10″)
• Processing Capacity: Approx. 110 sheets/hour (35x43cm), Approx. 160 sheets/hour (20x25cm)
• Pixel Size: 50µm (508 dpi) / 100µm (254 dpi)
• Recording Gradation: 14 bits (16383 levels)
• Image Memory: 1GB
• Input Channels: DICOM network input (max. 10 simultaneous connection associations)
• Film Trays: Up to 3 trays online
• Dimensions (WxDxH): 610mm x 630mm x 1125mm (without sorter); 610mm x 630mm x 1425mm (with sorter)
• Weight: 125 kg (275.6 lbs.)
• Power Supply: Single phase 50-60Hz, AC100-240V ±10%
• Operating Temperature: 15 to 30°C (59 to 91°F)
• Operating Humidity: 15 to 70% rH, non-condensing
• Atmospheric Pressure: 750 to 1060 hPa
