Colenta CR (Computed Radiography) System

Colenta CR (Computed Radiography) System Overview

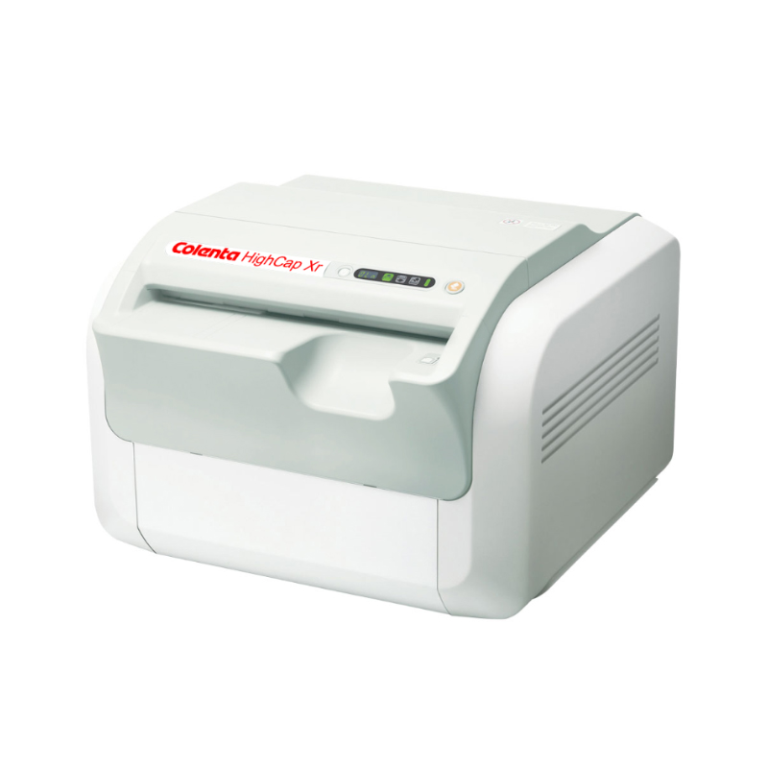

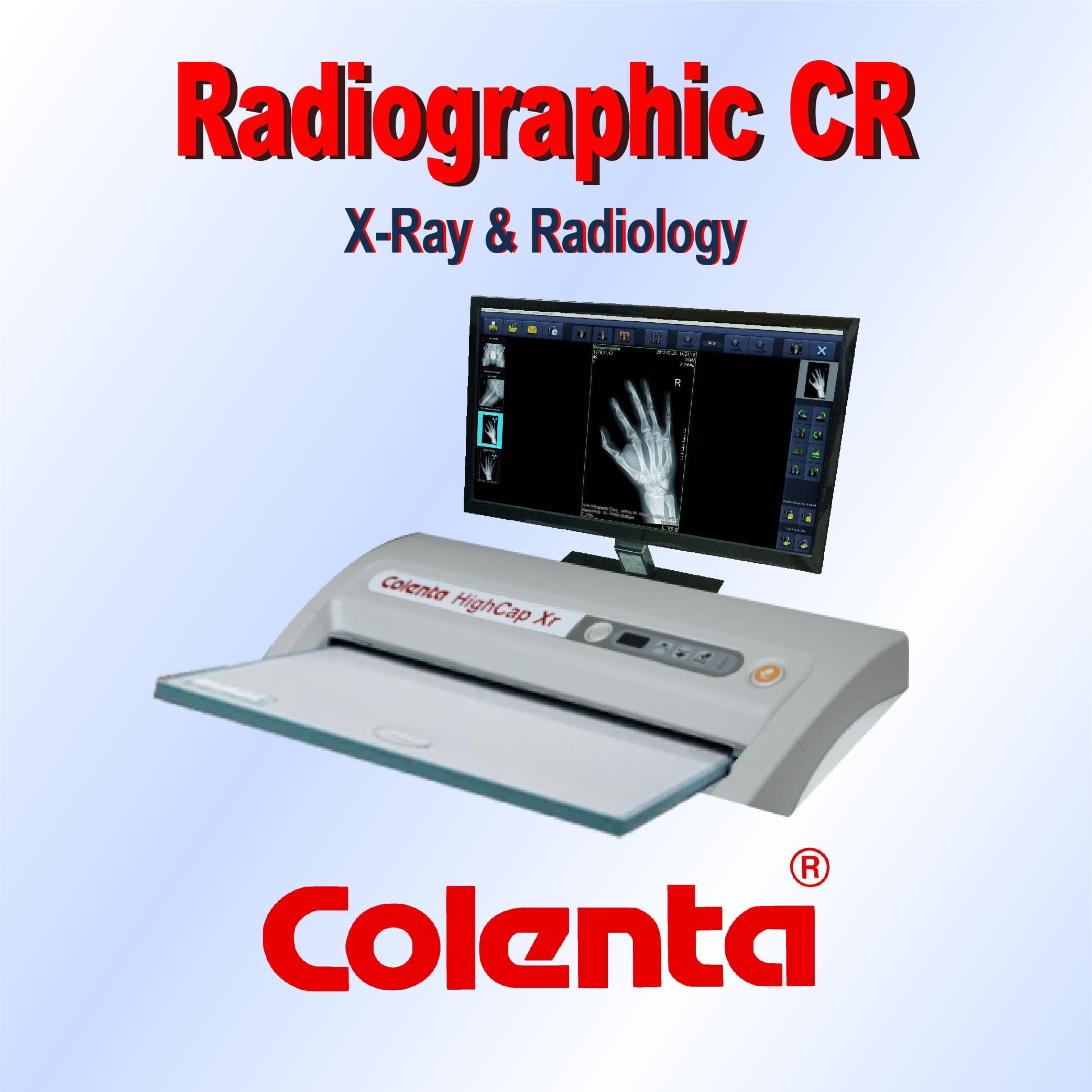

The Colenta CR (Computed Radiography) System, specifically the DX Easy Imaging CR Retrofit Kit HighCap Xr, represents a significant advancement in digital radiography, designed to seamlessly integrate into existing X-ray facilities in Bangladesh. This state-of-the-art tabletop reader unit revolutionizes image acquisition by utilizing Imaging Plates (IPs) to digitize X-ray images, eliminating the need for traditional film. Engineered for exceptional speed and ease of use, the Colenta CR system dramatically reduces patient waiting times and optimizes the efficiency of your radiology workflow, making high-quality digital imaging accessible and cost-effective.

Colenta CR (Computed Radiography) System Key Features

• World-Class Processing Speed: Achieve unparalleled throughput with up to 73 IPs/hour for 8” x 10” (18cmx24cm) plates, and up to 47 IPs/hr for 14” x 17” (35cmx43cm) plates, ensuring rapid turnaround times.
• Exceptional Ease of Operation: Designed for intuitive use, minimizing training requirements and maximizing operator efficiency.
• Space-Saving Design: Its compact, tabletop form factor makes it an ideal retrofit solution for facilities with limited space.
• High-Quality Imaging: Delivers excellent grayscale resolution up to 12 Bit, with reading resolutions of 5, 10, or 20 pixels/mm, ensuring detailed and accurate diagnostic images.
• Versatile IP Compatibility: Supports a wide range of Imaging Plate sizes, including 14” x 17”, 14” x 14”, 10” x 12”, 8” x 10”, and 15cm x 30cm, catering to diverse radiographic needs.
• Fast Image Availability: Features a minimal time to start on display of 33 seconds, allowing for quick image review and diagnosis.
• Robust Performance: Built with durable components to ensure long-term reliability and consistent performance in demanding clinical environments.

Technical Specifications

• Processing Capacity: Up to 47 IPs/hr (14” x 17”), Up to 73 IPs/hr (8” x 10”)
• IP Feed/Load Time: Minimum 49 seconds
• Time to Display: Minimum 33 seconds
• Grayscale Resolution: 12 Bit
• Reading Resolution: 5 pixel/mm, 10 pixel/mm, 20 pixel/mm (Mod. XMr)
• Pixel Size: 100µm, 50 µm (Mod. XMr)
• IP Sizes Supported: 14” x 17”, 14” x 14”, 10” x 12”, 8” x 10”, 15cm x 30cm
• Stacker Count: 1
• Network Interface: 10 Base T / 100 Base-TX
• Weight: 39 kg (86 lbs.)
• Dimensions (WxDxH): 560mm x 540mm x 392 mm (22” x 21” x 15”)
• Power Supply: Single-phase 50-60Hz, AC120-240V ±10%
• Operating Temperature: 15-30°C
• Operating Humidity: 40-80% RH (No dew condensation)
• Laser Classification: Class 1 Laser Product (IEC60825-1:2001)
• PC Minimum Requirements: Intel Core i5 (3.2 GHz), 4GB RAM, 2 x 500GB SATA HDD (RAID support), 2 x GBit LAN, VGA (24-bit color)
