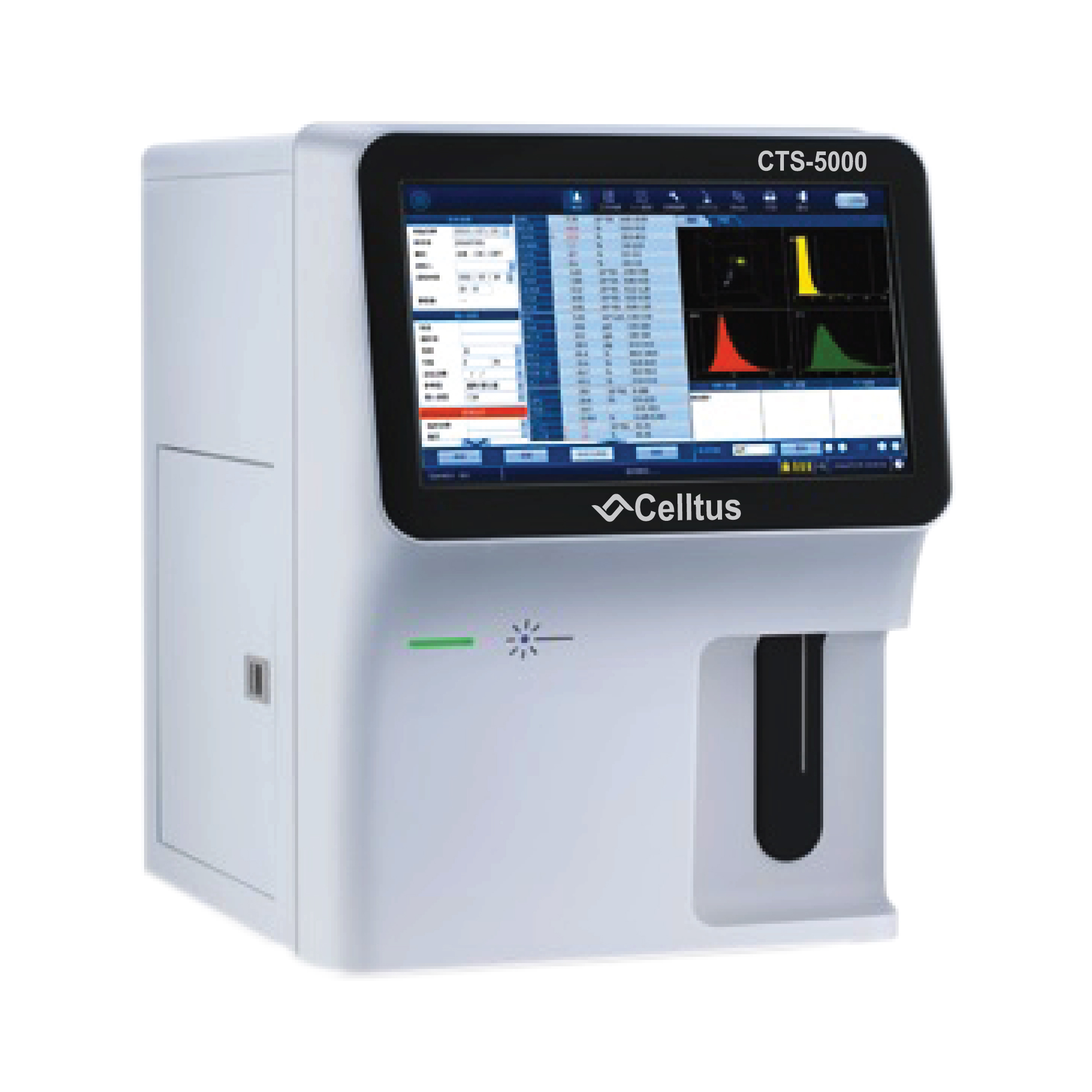

Celltus CTS-5000 5-Part Hematology Analyzer

Celltus CTS-5000 5-Part Hematology Analyzer: Precision Diagnostics for Your Laboratory

The Celltus CTS-5000 5-Part Hematology Analyzer is a state-of-the-art, quantitative, and automated diagnostic instrument engineered to deliver precise and comprehensive blood cell counts. Designed for high-throughput clinical laboratories and diagnostic centers in Bangladesh, this advanced analyzer significantly enhances diagnostic workflow efficiency and accuracy, empowering healthcare professionals to make confident clinical decisions.

Celltus CTS-5000 5-Part Hematology Analyzer Key Features

• Advanced 5-Part Differentiation: Provides detailed phân tích of white blood cells (WBC) into five distinct populations for nuanced diagnostic insights.
• Comprehensive Parameter Count: Analyzes a broad spectrum of 29 vital parameters, offering a complete blood count (CBC) with differential analysis.
• Versatile Measurement Modes: Supports both CBC and DIFF+CBC modes, catering to diverse clinical testing requirements.
• High Throughput: Processes up to 60 samples per hour, optimizing laboratory efficiency and reducing turnaround time.
• Minimal Sample Volume: Requires a small sample volume of less than 20µl, ideal for pediatric and difficult-to-draw samples.
• Intuitive Touchscreen Interface: Features a large, high-resolution 14-inch touchscreen display (1366×768) for user-friendly operation and clear data visualization.
• Cutting-Edge Technology: Utilizes advanced Tri-Angle Laser Scatter and Flow Cytometry Technology for superior accuracy and reliable cell classification.
• Efficient Reagent System: Operates with four essential reagents: Diluents, LH Lyse, LD Lyse, and Probe Cleanser, ensuring optimal performance and cost-effectiveness.
• Cost-Effective Testing: Offers a low cost per test, making advanced hematology analysis accessible and economically viable for healthcare providers.
• Extensive Data Storage: Capable of storing up to 100,000 samples, facilitating easy data retrieval and historical analysis.
• Multiple Sample Modes: Supports Whole Blood Mode, Prediluted Mode, and Capillary Whole Blood Mode for maximum flexibility.
• Advanced Data Analysis: Includes 3 histograms and 1 differential scattergram, along with intelligent alarms for abnormal erythrocytes, leukocytes, and platelets.
• Broad Printer Compatibility: Supports various external printers for convenient report generation.
• Robust Construction: Designed with a net weight of 45 Kg, indicating a sturdy build for reliable laboratory use.

Technical Specifications

• Product Type: Quantitative, Automated Hematology Analyzer
• Differentiation: 5-Part
• Parameters: 29
• Measurement Modes: CBC, DIFF+CBC
• Chambers: 3
• Sampling Volume: < 20µl
• Throughput: Up to 60 samples/hour
• Reagents: Diluents, LH Lyse, LD Lyse, Probe Cleanser
• Display: 14-inch High-Resolution Touchscreen (1366×768)
• Technology: Tri-Angle Laser Scatter and Flow Cytometry
• Net Weight: 45 Kg
• Sample Storage: Up to 100,000 samples
• Counting Parameters Include: WBC, Lym#, Mon#, Neu#, Eos#, Bas#, Lym%, Mon%, Neu%, Eos%, Bas%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, PDW, MPV, PCT, LIC%, LIC#, ALY%, ALY#, P-LCC, P-LCR
• Data Visualization: 3 Histograms, 1 Differential Scattergram
• Abnormality Alerts: Erythrocytes, Leukocyte, Platelet
• Printer Support: Various external printers
• Repeatability (Typical): WBC < 2% (1.0~10.0 x 10⁹/L), RBC < 1.5% (1.10~7.00 x 10¹²/L), HGB < 1.5% (71~240g/L), MCV < 1.0% (70~120 fl), PLT < 4.0% (101~999 x 10⁹/L)
• Linearity Range (Typical): WBC 4~15 x 10⁹/L (< 5%), RBC 3.5~6 x 10¹²/L (< 0.5%), HGB 110~180g/L (< 0.2%), MCV 0~67% (< 2%), PLT 100~500 x 10⁹/L (< 8%)
