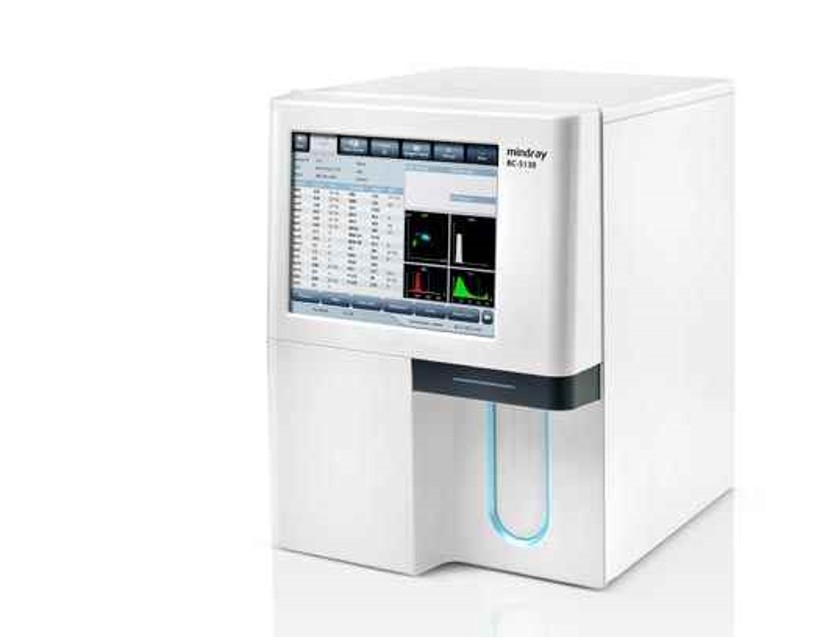

Mindray BC-5130 Auto Hematology Analyzer

Mindray BC-5130 Auto Hematology Analyzer Overview

The Mindray BC-5130 Auto Hematology Analyzer is a compact, high-precision 5-part differential analyzer designed to deliver complete CBC and 5-part WBC results for diagnostic laboratories, pediatric clinics and point-of-care settings with limited space and moderate daily sample volume. It provides accurate, cost-efficient hematology testing with a user-friendly touchscreen interface and built-in reagent storage to streamline lab workflow.

Mindray BC-5130 Auto Hematology Analyzer Key Features

• Complete CBC + 5-part differential — Full hematology panel including neutrophils, lymphocytes, monocytes, eosinophils and basophils for comprehensive clinical assessment.
• High analytical accuracy — Tri-angle laser scatter combined with chemical dye and flow cytometry technologies plus a dedicated optical channel for basophil measurement improves differential precision.
• Sensitive RBC/PLT counting — Improved DC impedance with a 50 μm counting aperture enhances platelet detection and accuracy on low-platelet samples.
• User-friendly touchscreen operation — 10.4‑inch TFT touch screen supports full instrument control on-screen, minimizing the need for an external PC.
• Space-saving, compact design — The lightest and most compact 5-part Mindray analyzer with internal storage for two lyse reagents to reduce bench footprint.
• Flexible sample modes — Supports whole blood, capillary whole blood (direct sampling useful for pediatric patients) and prediluted mode with a higher dilution ratio for convenient sample handling.
• Efficient workflow — Up to 60 samples per hour throughput and on-board storage of up to 150,000 patient records to support busy labs.
• Cost-effective operation — Only three routine reagents required, each with a 2‑year shelf life and low overall reagent consumption to reduce operating costs.
• Connectivity & quality assurance — Bi-directional LIS support with HL7 protocol and provision of original QC and calibrator to ensure traceability and reliable results.
• Durable components — Miniaturized semiconductor laser offers smaller size, lower cost and longer life cycle compared with traditional lasers, plus highly integrated electronics and optimized liquid handling for robust daily use.

Technical Specifications

• Model: Mindray BC-5130 Auto Hematology Analyzer
• Testing capability: CBC + 5-part WBC differential
• Reportable parameters: 25 reportable parameters
• Research parameters: 23 research parameters
• Histograms: 3
• Sample modes: Whole blood mode, Capillary whole blood mode, Prediluted mode (higher dilution ratio)
• Measurement technologies: Tri-angle laser scatter, chemical dye, flow cytometry; dedicated optical counting channel for basophil measurement
• RBC/PLT measurement: Improved DC impedance technology; 50 μm counting aperture for enhanced low-platelet performance
• Throughput: 60 samples per hour
• Display: 10.4‑inch large TFT touch screen with full instrument operation
• Data storage capacity: Up to 150,000 samples
• Reagents: Two lyse reagents located inside the instrument; three routine reagents required; reagent shelf life 2 years
• Connectivity: Bi-directional LIS support; HL7 protocol compatible
• Quality control: Original QC materials and calibrator provided to ensure traceability and testing quality
• Design & durability: Compact footprint enabled by miniaturized semiconductor laser, highly integrated electronic boards and optimized liquid handling
• Additional parameter: Neutrophil-to-Lymphocyte Ratio (NLR) included in each CBC+DIFF result for inflammation and prognosis assessment
