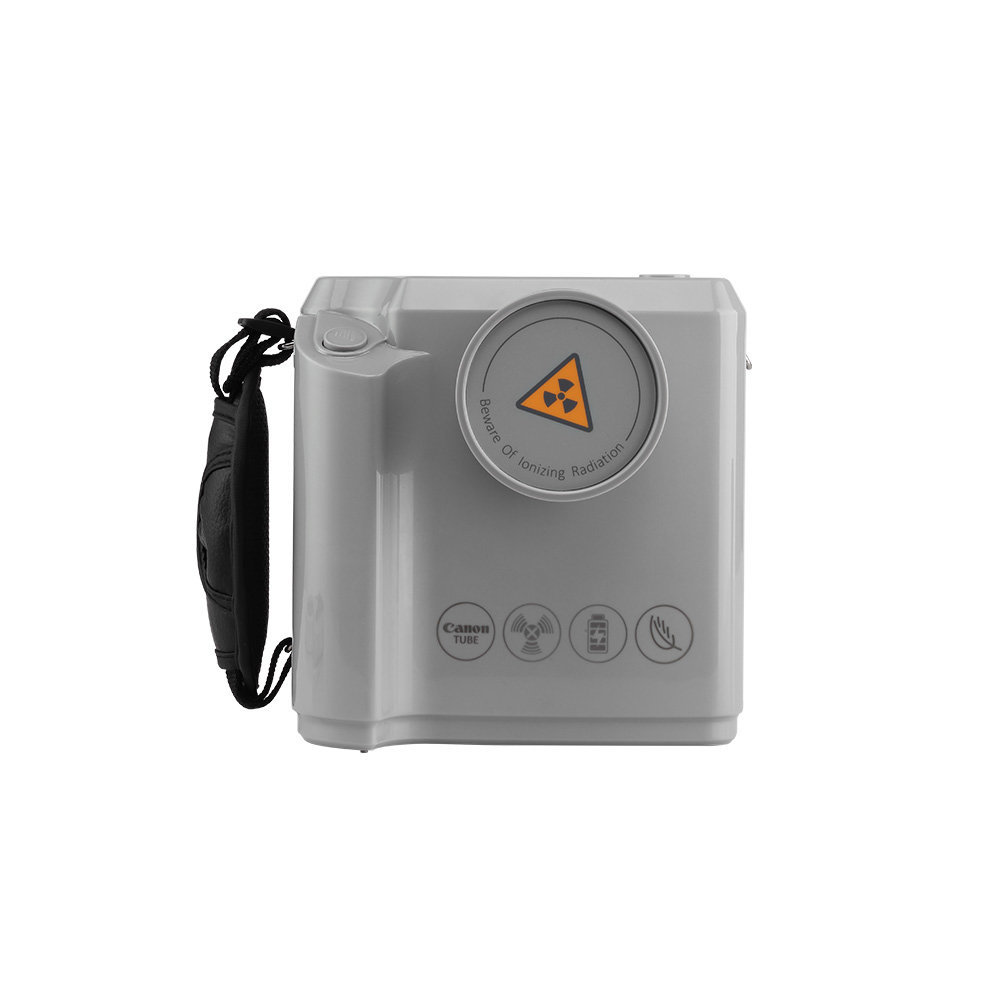

Youjoy Portable Hand Type Dental X-Ray

Youjoy Portable Hand Type Dental X-Ray Overview

The Youjoy Portable Hand Type Dental X-Ray is a state-of-the-art, high-frequency dental imaging solution engineered for modern dental practices in Bangladesh. This compact, handheld device delivers exceptional diagnostic clarity with minimal radiation exposure, ensuring the safety of both patients and operators. Its advanced technology provides high-definition X-ray images chairside, streamlining the diagnostic process and enhancing treatment planning for dentists.

Youjoy Portable Hand Type Dental X-Ray Key Features

• High-Frequency Technology: Ensures superior image quality and diagnostic accuracy.
• Low Radiation Exposure: Designed with patient and operator safety as a priority, emitting significantly less radiation.
• Compact & Ergonomic Design: Lightweight and single-handed operation for maximum portability and ease of use.
• High-Definition Imaging: Features a 0.4mm focal spot and Canon tube for exceptionally clear and detailed X-ray images.
• Digital Control: Provides precise control over exposure settings for consistent and reliable results.
• Widescreen Display: Facilitates easy operation and clear visualization of settings.
• Versatile Application: Ideal for use in diagnostic centers and private dental clinics.
• Portability: Effortlessly transportable between locations, offering flexibility in practice settings.

Technical Specifications

• Model: YOU98 (P)
• Tube Type: Canon d-045
• Tube Current: 2mA (±20%)
• Tube Voltage: 70kV (±10%)
• Anode Angle: 12.5°
• Focal Spot: 0.4 mm
• Exposure Time Range: 0.04 s – 2.0 s (approximate)
• Rated Voltage: 100V – 240V
• Frequency: 50Hz – 60Hz
• Radiation Leakage: ≤ 0.25 mGy/h at 1 meter
• Weight: 1.7 kg
• Relative Humidity: 30% RH ~ 75% RH
• Origin: Made in China
• Warranty: One-Year Service Warranty
