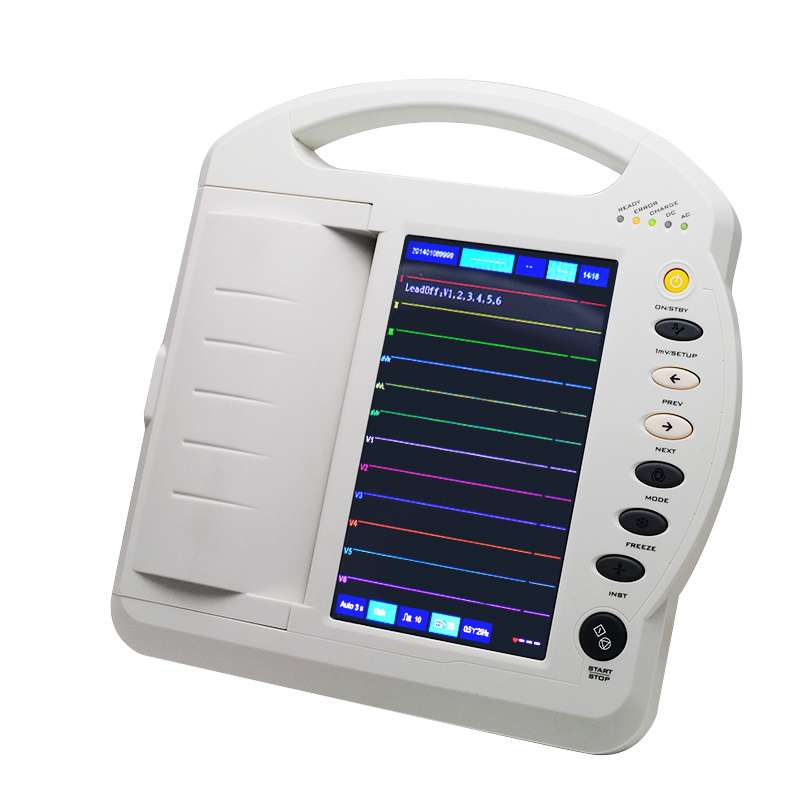

Vision Care 1212A 12 Channel ECG Machine

Vision Care 1212A 12 Channel ECG Machine Overview

The Vision Care 1212A 12 Channel ECG Machine is a high-precision device designed for comprehensive cardiac monitoring and diagnostics. This state-of-the-art ECG machine facilitates simultaneous acquisition and display of 12-lead ECG data, making it an essential tool for healthcare professionals in hospitals and clinics. With its advanced features and user-friendly interface, the Vision Care 1212A ensures accurate and reliable ECG readings, enhancing patient care and diagnostic capabilities.

Vision Care 1212A 12 Channel ECG Machine Key Features & Benefits

• High-Resolution Display: 10-inch 1024*600 touch screen with wide-angle view for easy navigation and reading.
• Simultaneous 12-Lead Acquisition: Capture and display 12-lead ECG data in real-time for thorough analysis.
• Multiple Operation Modes: Choose from Manual, Auto, and Rhythm analysis modes to suit your diagnostic needs.
• Digital Filters: Advanced filters eliminate EMG and AC interference, ensuring high-quality readings.
• Built-in Rechargeable Battery: A 4400mAh Li-ion battery provides up to 2 hours of continuous operation, enhancing portability.
• User-Friendly Interface: Supports input for patient name, age, sex, and hospital name for comprehensive reporting.
• Data Storage: Store and replay up to 200 patient reports for convenient access and review.
• Safety Standards: Complies with IEC Class I, type CF safety regulations for patient protection.
• Lightweight Design: Weighing just 3.9 kg, this ECG machine is easy to transport and set up.

Technical Specifications

• Display: 10-inch LCD, 1024 x 600 resolution, backlit
• Print Channels: 12 channels, rhythm lead selectable
• Printing Speed: 5, 6.25, 10, 12.5, 25, 50 mm/s ± 3%
• Recording Sensitivity: 1.25, 2.5, 5, 10, 20, 40 mm/mV ± 2%
• Input Dynamics: ±500 mV
• Input Impedance: ≥50 MΩ
• Patient Current Leakage: <10 μA
• Calibration Voltage: 1 mV ± 2%
• Power Supply: 220V ± 10%, 50Hz ± 2%, 75VA
• Frequency Response: 0.05 to 150 Hz
• Time Constant: ≥3.2 s
• Data Acquisition: 12 bits; 8000 samples/sec
• Machine Weight: 3.9 kg; Gross Weight: 6.4 kg (with accessories)
• Accessories Included: Patient cable, chest electrodes, limb electrodes, power cable, ground wire, thermal paper, user manual
