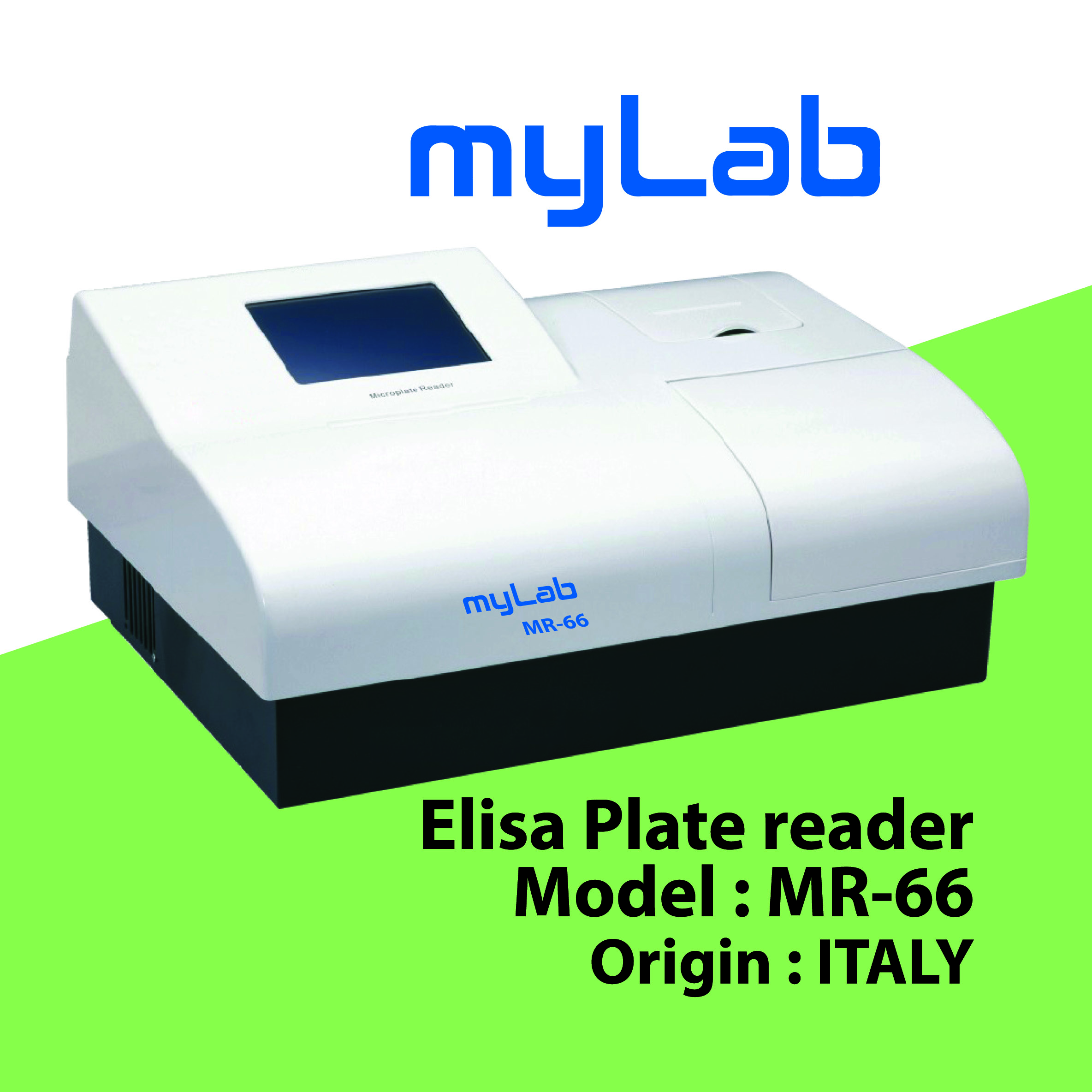

MyLab MR-66 Hormone Analyzer – Elisa Plate Reader

MyLab MR-66 Hormone Analyzer – Elisa Plate Reader Overview

The MyLab MR-66 Hormone Analyzer is a cutting-edge Elisa Plate Reader designed for precise measurement and analysis of various hormones. This advanced device is engineered to provide accurate results, streamline laboratory workflows, and enhance overall productivity.

MyLab MR-66 Hormone Analyzer – Elisa Plate Reader Key Features & Benefits

• Accommodates different Microplate geometries for flexibility and convenience.
• Plate shaking facility with variable speed and duration ensures thorough mixing and reliable results.
• Ability to read plate within seconds reduces analysis time and increases sample throughput.
• Digital light control with unique circuit for long lamp life extends the lifespan of the device.
• Matrix mode for Result printing enables easy and accurate data documentation.
• Multiple blank setting in cut off mode simplifies the analysis process.
• Storage of calibration curves and Plate results ensures data integrity and trackability.
• Bichromatic and Trichromatic Readings provide comprehensive analysis capabilities.
• Variety of Curve fit modes (Linear, Point to Point will scales such as Log ABS/Conc, Logit ABS/Log Conc, ABS/Conc, Log ABS/Log Conc etc.) enable precise data interpretation.

Technical Specifications

• Human Machine Interface: TOUCH PANEL/KEYPAD
• Linear Measurement Range: 0.000 to 3.500 Absorbance Units (A)
• Photometric Accuracy: ±2 % or 0.007 whichever is higher, from 0 to 1.5 A, ±3 % from 1.5 A to 3.5 A
• Drift: <0.005 A/hr
• Optical measurement: 8 Channel
• Filters:
  • Type of filter: High Quality Narrow band Interference
  • Wave Length: 405nm, 450 nm, 492 nm, 630 nm & Four Optional
  • Half Bandwidth: 10nm ± 2nm
  • Selection: Automatic by Stepper Motor
• Display: 6″ Graphics LCD, Negative Blue, STN
• Curve Plotting: Graphical Representation on Printer
• Plate Carrier Movement: Precisely trough the stepper motor
• Printer: Built in Thermal Printer 52 columns
• Memory: Up for 250 tests and more than 2500 results
• Analysis Mode: Absorbance (Normal & Differential) Cut – off Multi – Standard % Absorbance Single Standard Uptake Kinetic
• RS232 Serial Port/USB: 9600 baud, 8 data, 1 stop, no parity bits/USB
• Power: 75 Watts/115 – 230 Volts ± 10%, 50/60 Hz
• Weight: 10 Kgs. (Approx)
