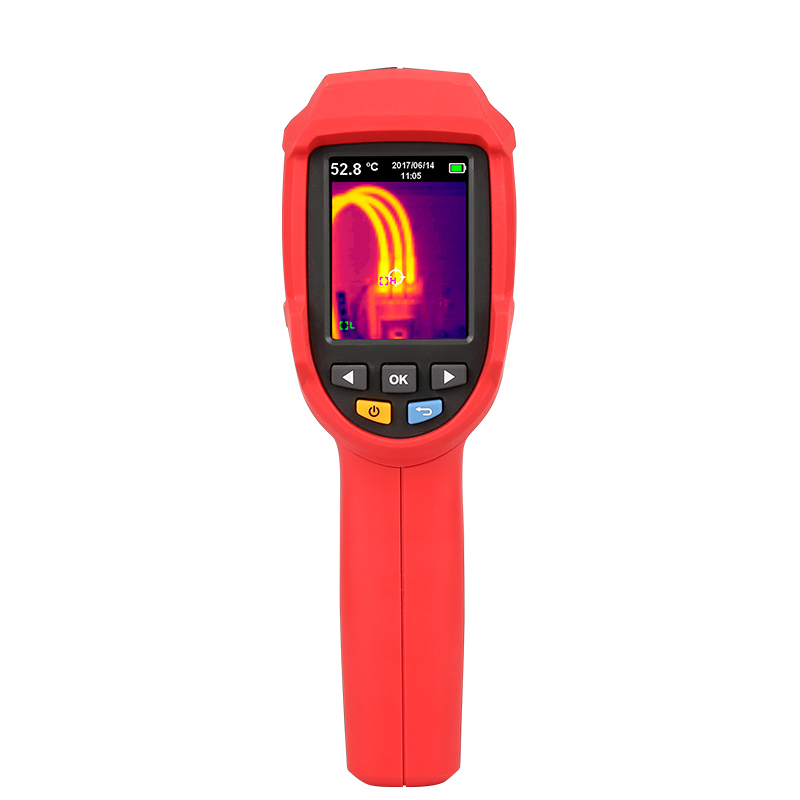

Infrared Thermal Imaging Camera UNI-T UTi85H+ Digital Temperature Detector

Infrared Thermal Imaging Camera UNI-T UTi85H+ Digital Temperature Detector Overview

The UNI-T UTi85H+ Infrared Thermal Imaging Camera is a sophisticated digital temperature detector designed for rapid and accurate non-contact temperature measurement across an area. Unlike traditional infrared thermometers that provide single-point readings, this advanced thermal imager utilizes a high-resolution infrared sensor and a clear 2.8″ TFT display to visualize temperature variations within a target zone. Its integrated visual camera and image blending capabilities allow for detailed analysis, making it an indispensable tool for various applications requiring precise thermal assessment, from industrial inspections to health screening.

Infrared Thermal Imaging Camera UNI-T UTi85H+ Digital Temperature Detector Key Features & Benefits

• Comprehensive Area Temperature Detection: Replaces single-point measurements with detailed thermal imaging, offering a broader understanding of temperature distribution.
• High-Temperature Alarm System: Features a customizable high-temperature limit (default 37.3℃) with visual and auditory alerts (indicator light and buzzer) for immediate identification of abnormal temperatures, crucial for rapid screening.
• Dual Laser Targeting: Integrated dual lasers quickly define the measurement area, enhancing accuracy and user confidence.
• Image Blending Functionality: Seamlessly combines infrared thermal images with standard visual camera images (640×480 resolution) for in-depth analysis and easier identification of specific areas of interest.
• High-Resolution Thermal Imaging: Equipped with a 160×120 infrared resolution and a 9Hz frame rate for clear, responsive thermal data capture.
• Accurate Temperature Measurement: Offers a precise temperature measurement range of 30℃ to 45℃ with an accuracy of ±0.5℃.
• Data Storage and Analysis: Includes a 8GB Micro SD card for storing thermal images and temperature data. PC software is available for detailed analysis.
• Real-Time Image Transmission: Connects via Type-C USB to a computer for real-time image mirroring and live data streaming, facilitating immediate review and reporting.
• User-Friendly Interface: Features a bright 2.8″ TFT screen for easy viewing and a Type-C USB port for convenient charging and data transfer.
• Enhanced Usability: Includes a built-in flashlight for improved visibility in low-light conditions and a standard 1/4″ tripod mounting hole for stable operation.
• Adjustable Emissivity: Allows for precise calibration based on the surface properties of the measured object, ensuring greater accuracy.
• Portable and Digital: Designed for ease of use and portability, making it suitable for field applications.

Technical Specifications

• Brand: UNI-T
• Model: UTi85H+
• Infrared Resolution: 160×120
• Frame Rate: 9Hz
• Temperature Measurement Range: 30℃ ~ 45℃
• Accuracy: ±0.5℃
• Display: 2.8″ TFT Screen
• Visual Camera Resolution: 640×480
• Storage: 8GB Micro SD Card (Standard Package)
• Alarm: Buzzer and Indicator Light (High-Temperature Alarm)
• Laser: Dual Lasers for Area Targeting
• Connectivity: Type-C USB Port (Charging & Data Transmission)
• Mounting: 1/4″ Tripod Mounting Hole
• Features: Image Blending, Flashlight, PC Software Analysis, Real-time Image Transmission
