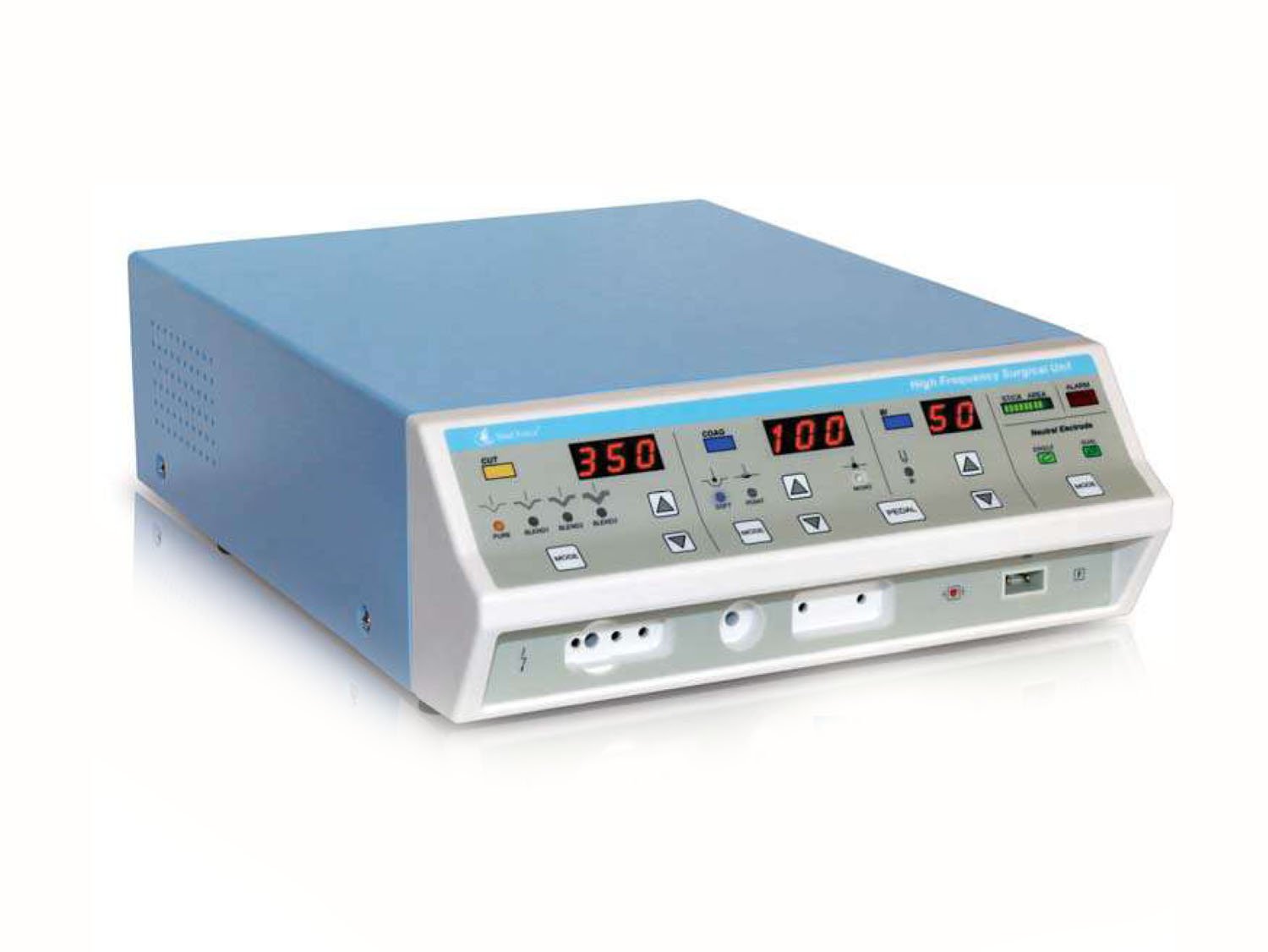

Heal Force EB05400W Electrosurgical Diathermy

Heal Force EB05400W Electrosurgical Diathermy Overview

The Heal Force EB05400W Electrosurgical Diathermy is a high‑precision electrosurgical generator designed for cutting and coagulation across multiple surgical specialties. It delivers controlled, reproducible tissue effects for general surgery, dermatology, plastic surgery, endoscopy, vascular, thoracic and cardiac procedures, minimally invasive surgery and ophthalmology.

Heal Force EB05400W Electrosurgical Diathermy Key Features

• High power and versatility: Maximum output 400 watts to support demanding cutting and coagulation needs.
• Multi‑channel outputs: 7 monopolar and 3 bipolar outputs for flexible instrument configuration in the OR.
• Precise tissue control: Multiple cutting (Pure, Blend1–3) and coagulation (Point, Soft, Spray) modes engineered for smooth cutting and predictable haemostasis.
• Reliable safety systems: Automatic recognition of return electrode (solid or split) and continuous current monitoring to reduce patient risk.
• Memory & usability: Program memory and an easy‑to‑use interface for rapid setup and repeatable settings between cases.
• Expandable functionality: Optional argon module for enhanced non‑contact coagulation and optional adaptor for laparoscopy/thoracoscopy applications.
• Electrical isolation: Isolated, fully floating outputs to minimize leakage currents and improve OR safety.
• Built for clinical use: Robust construction and serviceable design to support continuous use in busy surgical departments.
• Local support and procurement: Contact Medivillabd for price, installation, training and after‑sales service in Bangladesh.

Technical Specifications

• Maximum power output: 400 watts.
• Outputs: 7 monopolar outputs; 3 bipolar outputs.
• Safety & monitoring: Automatic return electrode recognition (solid or split), automatic current monitoring, program memory.
• Electrical design: Isolated output, all outputs floating to reduce patient leakage current.
• Optional modules/accessories: Argon plasma module (optional); laparoscopy/thoracoscopy adaptor (optional).
• Cutting modes (Monopolar):
  • Pure — 400 W, 500 Ω load, ≈2300 V, Crest Factor 1.5
  • Blend1 — 300 W, 500 Ω load, ≈2700 V, Crest Factor 2.1
  • Blend2 — 200 W, 500 Ω load, ≈3200 V, Crest Factor 2.5
  • Blend3 — 150 W, 500 Ω load, ≈3700 V, Crest Factor 3.1
• Coagulation modes (Monopolar):
  • Point — 120 W, 500 Ω load, ≈5600 V, Crest Factor 6.1
  • Soft — 120 W, 500 Ω load, ≈3400 V, Crest Factor 6.1
  • Spray — 120 W, 500 Ω load, ≈8500 V, Crest Factor 8.3
• Bipolar modes:
  • Cutting Standard — 70 W, 200 Ω load, ≈1450 V, Crest Factor 1.5
  • Coagulation Standard — 70 W, 500 Ω load, ≈240 V, Crest Factor 1.5
  • Coagulation Precise — 70 W, 200 Ω load, ≈360 V, Crest Factor 1.5
• Clinical applications: General surgery, dermatology, plastic surgery, endoscopy, vascular surgery, heart/thoracic surgery, minimally invasive surgery, ophthalmology.
• Maintenance & serviceability: Designed for straightforward routine maintenance and reliable clinical uptime; Medivillabd provides local service arrangements and training.
