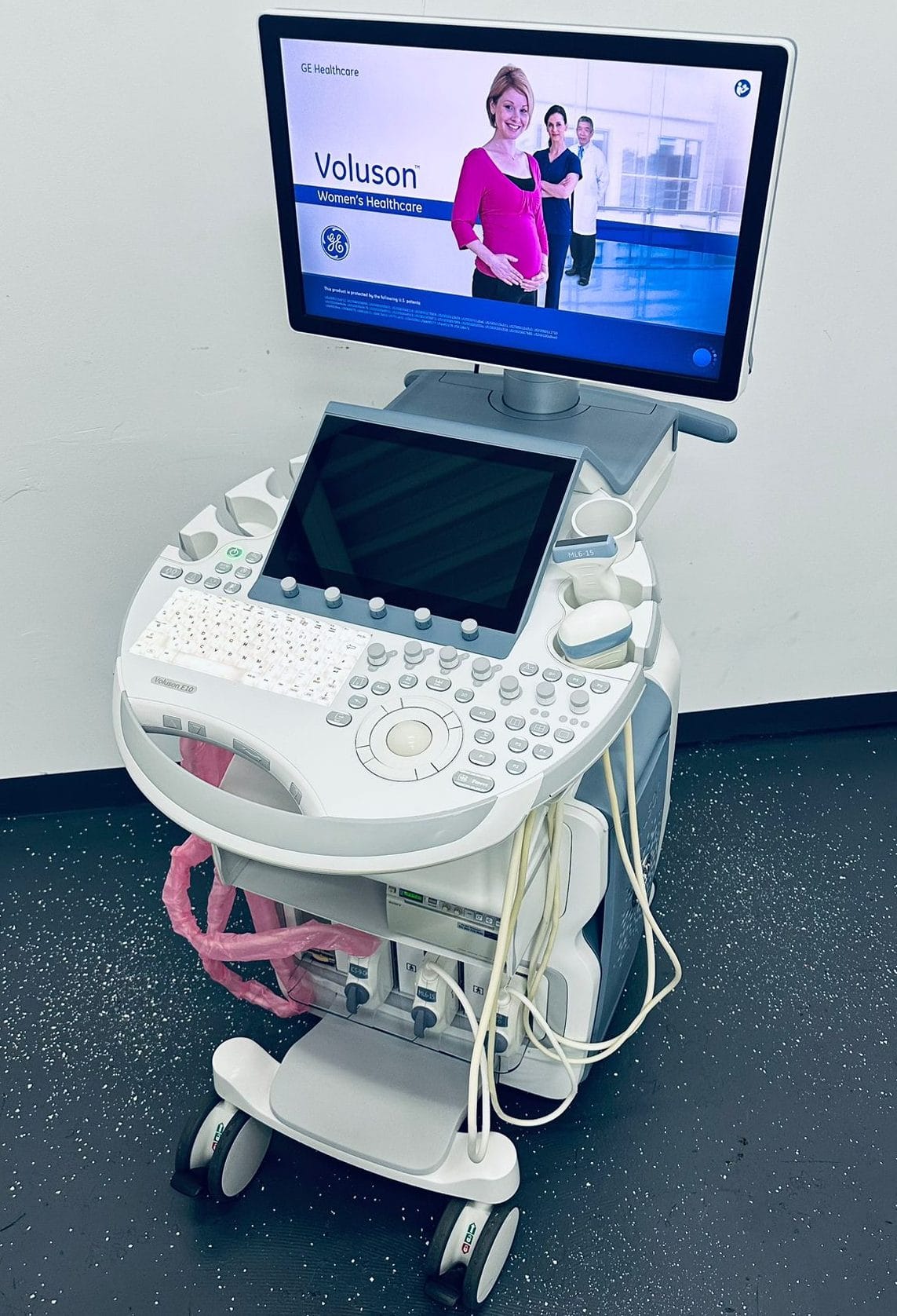

GE Voluson E10 Ultrasound System –High-Performance Refurbished

Voluson E10 – Advanced 4D Ultrasound

The GE Voluson E10 represents a significant leap forward in 4D ultrasound imaging, especially for obstetric applications. While digital 4D transducer technology has long been standard in cardiac imaging, its full potential in OB/GYN was limited by processing power—until now. The E10 changes that with a completely reengineered architecture that delivers up to 4x the processing power of the Voluson E8. This advancement enables faster frame rates, enhanced spatial and temporal resolution, and exceptional image clarity even in challenging cases.

Coupled with GE’s HDlive™ technology, the Voluson E10 delivers incredibly realistic fetal imaging, often referred to as “babyface imaging,” providing expectant parents and clinicians with lifelike 3D/4D images. The system also incorporates the powerful Matrix 4D transducer, pushing performance further with improved resolution and deeper penetration.

Key Features:

• Advanced Processing: Four times the processing power of the Voluson E8, enabling superior image quality and real-time performance.

• HDlive Imaging: Offers high-definition, lifelike fetal images with remarkable detail and clarity.

• Matrix 4D Transducer: Enhanced frame rates and resolution, even with difficult-to-scan patients.

• Modern Ergonomics: Includes an intuitive, tablet-style touchscreen with gesture control, and an optional high-resolution OLED display for crystal-clear viewing.

Specialized Imaging Tools:

• Biplane Imaging: Visualize two perpendicular planes simultaneously with high resolution and frame rate—ideal for diagnostic precision.

• VCI-A (Volume Contrast Imaging – Advanced): Improves contrast in grayscale and Doppler modes for more accurate evaluations.

• eSTIC: Achieves up to 75% faster acquisition times for fetal cardiac exams compared to standard STIC, enhancing workflow and diagnostic efficiency.

• e4D SnapShot: Captures real-time 4D volumes for more detailed 3D data sets or eSTIC imaging.

• Tricefy Inside: Enables secure, cloud-based image sharing and remote collaboration directly from the system.

Whether you’re upgrading your current system or expanding your OB/GYN imaging capabilities, a  GE Voluson E10 offers premium performance, cutting-edge features, and exceptional value.
