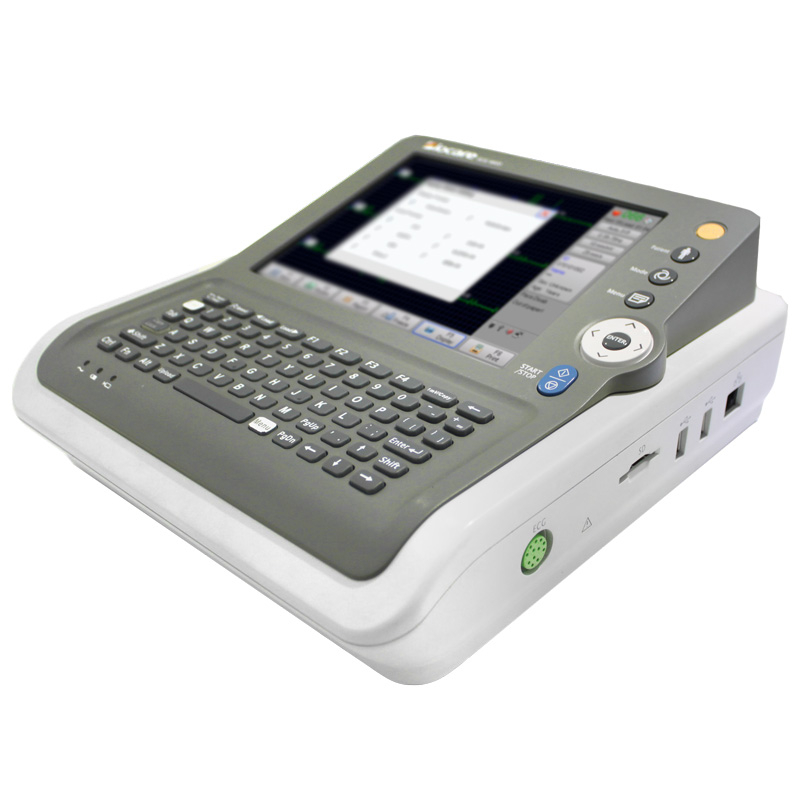

Electrocardiograph 6 Channel Biocare IE-6 ECG Machine

Electrocardiograph 6 Channel Biocare IE-6 ECG Machine Overview

The Biocare IE-6 6-Channel Electrocardiograph is a state-of-the-art, mobile resting ECG device engineered for clinical accuracy and user convenience in Bangladesh. Designed for healthcare professionals seeking reliable cardiac diagnostics, this machine offers a comprehensive suite of features to capture, analyze, and print high-quality ECG data efficiently. Its intuitive interface and robust performance make it an indispensable tool for cardiology departments, clinics, and hospitals aiming to provide superior patient care.

Electrocardiograph 6 Channel Biocare IE-6 ECG Machine Key Features & Benefits

• Intuitive Operation: Features a high-resolution 8-inch TFT-LCD touchscreen display, alphanumeric keyboard, and practical shortcut buttons for effortless patient data entry and device navigation.
• Comprehensive Data Display: Provides simultaneous presentation of up to 12 leads on its clear LCD screen, offering a holistic view of cardiac activity.
• Advanced Interpretation: Includes built-in evaluation and interpretation capabilities, assisting clinicians in rapid diagnosis.
• Pacemaker Recognition: Equipped with advanced technology to accurately recognize pacemaker signals.
• Defibrillation Protected: Ensures safety in critical care environments.
• Versatile Recording Modes: Offers flexible lead modes including Auto, Manual, and Rhythm recording to suit diverse clinical needs.
• Superior Signal Filtering: Incorporates AC, deep pass, and baseline shift filters to ensure clean and accurate ECG tracings.
• Ample Storage: Boasts a large internal memory capable of storing up to 3,000 ECG records, minimizing the need for frequent printing.
• Integrated Thermoprinter: Features a built-in thermoprinter for immediate, high-quality printouts on 112 mm wide paper.
• Data Connectivity: Offers multiple connection options including SD Card and USB for easy data transfer and backup.
• Ergonomic Design: Includes a 15° angled display for enhanced readability and a compact form factor (25.7 x 29.1 x 10.6 cm) weighing approximately 2.3 kg, promoting portability.
• Extended Battery Life: Equipped with an integrated lithium battery providing up to 2.5 hours of continuous operation on a full charge.
• Real-time Alerts: Features warning alarms for detached electrodes and low battery status to ensure uninterrupted monitoring.
• Automatic Arrhythmia Printing: Automatically prints ECG data upon recognition of arrhythmias for prompt review.
• Flexible Data Export: Supports data export in multiple formats including JPG, BMP, PDF, XML, and DICOM for seamless integration into electronic health records.
• Minnesota Code Reference: Displays the Minnesota code on printouts, aiding in the identification of specific cardiac conditions.

Technical Specifications

• Model: Biocare IE-6
• Channel Configuration: 6-lead ECG machine
• Display: High-resolution 8″ TFT-LCD touchscreen
• Lead Display: Simultaneous presentation of up to 12 leads
• Filter Types: AC, Deep Pass, Baseline Shift
• Recording Modes: Auto, Manual, Rhythm
• Storage Capacity: Up to 3,000 ECGs
• Printer: Integrated thermoprinter (112 mm paper width)
• Connectivity: SD Card, USB
• Battery: Integrated lithium battery (approx. 2.5 hours continuous operation)
• Dimensions: 25.7 x 29.1 x 10.6 cm (L x W x H)
• Weight: Approx. 2.3 kg
• Power Supply: External power supply and integrated battery
• Data Formats: JPG, BMP, PDF, XML, DICOM
• Special Features: Pacemaker recognition, Defibrillation protected, Settable standby mode, Warning alarms, Automatic arrhythmia printout, 15° angled display, Minnesota code reference.
