Dual-Probes Multipurpose Wireless Ultrasound – Convex + linear + Cardiac Probe

Dual-Probes Multipurpose Wireless Ultrasound – Convex + linear + Cardiac Probe Overview

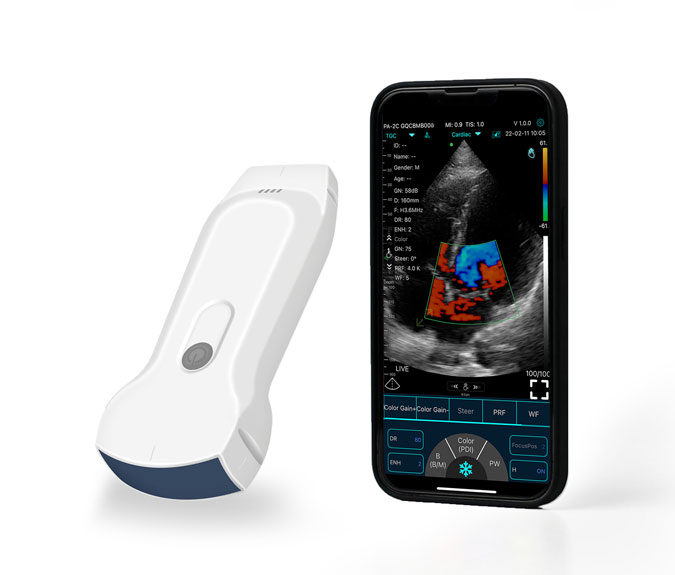

The Dual-Probes Multipurpose Wireless Ultrasound – Convex + linear + Cardiac Probe by Medivillabd is a state-of-the-art, handheld diagnostic ultrasound system designed for comprehensive whole-body imaging. Featuring integrated convex, linear, and cardiac probes, this advanced device offers unparalleled versatility for medical professionals. Its wireless connectivity to smartphones, tablets, and PCs, coupled with an IPX7 waterproof rating, ensures exceptional portability and ease of use in diverse clinical settings, making it an indispensable tool for accurate and efficient patient assessment.

Dual-Probes Multipurpose Wireless Ultrasound – Convex + linear + Cardiac Probe Key Features

• Versatile Dual-Probe Design: Seamlessly switch between convex, linear, and cardiac imaging modes for comprehensive diagnostics across multiple anatomical regions.
• Advanced Wireless & Wired Connectivity: Connect effortlessly via WiFi or USB to Android, iOS, or Windows devices (smartphones, tablets, PCs) for real-time imaging and data management.
• Exceptional Durability & Hygiene: Boasts an IPX7 waterproof rating, allowing for thorough disinfection and use in environments where sterility is paramount.
• High-Quality Imaging: Equipped with dual 128-element probes and advanced software parameters for adjustable gain, depth, dynamic range, and focus, ensuring superior image clarity and detail.
• Intuitive User Interface: Features a user-friendly interface with adjustable parameters and a wide array of presets for various examinations, including Abdomen, GYN, OB, Cardiac, Urology, and more.
• Extensive Measurement Capabilities: Offers precise measurements for B-mode, B+M mode, B+PW mode, and automatic vessel flow analysis, supporting accurate clinical decision-making.
• Long-Lasting Battery Life: Powered by two built-in, replaceable Lithium batteries, providing up to 4 hours of working time and 72 hours of standby time. Supports both USB and wireless charging.
• Enhanced Portability: Lightweight and compact design with anti-skid features on all four sides ensures secure handling and confident operation.

Technical Specifications

• Probe Type: Wireless Dual Head (Convex + Linear + Cardiac)
• Elements: Dual 128
• Frequencies: 3.5/5.0MHz (Convex), 7.5/10MHz (Linear), 2.5/5.0MHz (Cardiac)
• Imaging Depth: 90-305mm (Convex), 20-100mm (Linear), 90-160mm (Cardiac)
• Presets: 16+ categories including Abdomen, GYN, OB, Cardiac, Urology, Kidney, Lung, Thyroid, Small Parts, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve.
• Host Compatibility: Android/iOS/Windows Tablets, Smartphones, PCs
• Connection: WiFi & USB
• Software Parameters: Adjustable GN, D, ENH, DR, F, FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote.
• Measurement Functions: B-mode (Length, Area, Angle, Trace, Distance, GA, EFW), B+M (Heart Rate, Time, Distance, LVID, EF, SV), B+PW (Velocity, Heart Rate, S/D, Depth), Automatic Vessel Flow Measure.
• Playback Frames: 100, 200, 500, 1000 optional
• Display Modes: B, B+B, B/M, Color, PW, PDI, B+Color+PW
• Image Gray Scale: 256 levels
• WiFi: Built-in, 802.11g/20MHz/5G/450Mbps
• Channels: 64
• Frame Rate: 24s/f
• Gain: 40-110Db
• Languages: English, Chinese, Russian, German, Italian, French, Ukrainian, Spanish, Portuguese
• Power Source: Built-in 2 x Lithium Batteries
• Battery Replaceability: Yes (by engineer)
• Battery Life: Approx. 4 hours (Working), 72 hours (Standby)
• Charging: USB Charger, Wireless Charger compatible
• Waterproof Grade: IPX7
• Cooling: Built-in cooling coating
